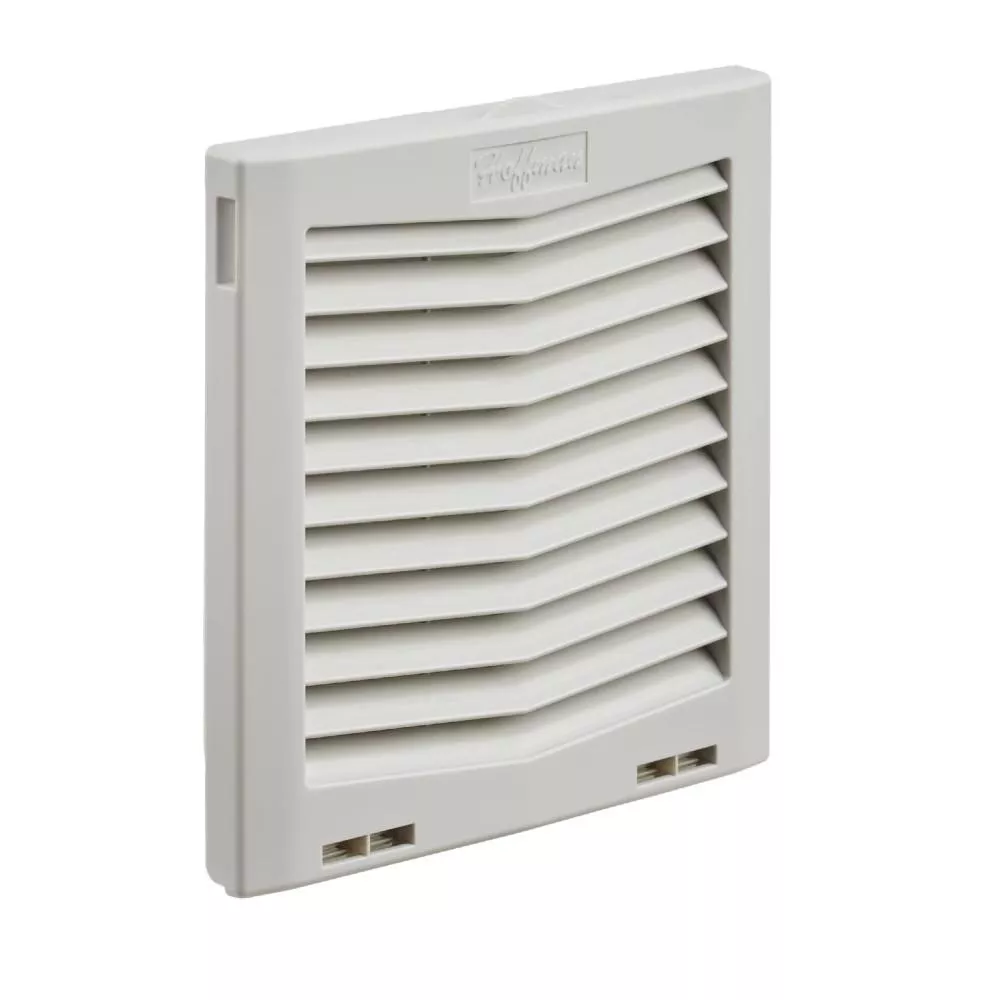

Exhaust grille kit, Type 12, RAL 7035 light-grey, UV-resistant material, Simple snap-open grille for easy filter replacement, For use with SF09 75 CFM (127 m3/hr) side-mount filter fans (SF0924414H, SF0948414H, SF0916414H, SF0926414H).
Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Hinged grille remains attached after opening
Size range from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Specifications
Brand Name
nVent Hoffman
Item Name
Grille
Type
Filter Fan Exhaust
Flow Rate
21 – 484 ft³/min
Series
HG09
Width
8.21 in
Depth
1.65 in
Height
8.19 in
Material
Plastic Enclosure
Color
RAL 7035 Light Gray
Finish
Matte
Mounting Type
Side Wall
Standards
UL Listed, cUL Listed, CE Certified, RoHS Compliant
Application
For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
UPC
783510342272
