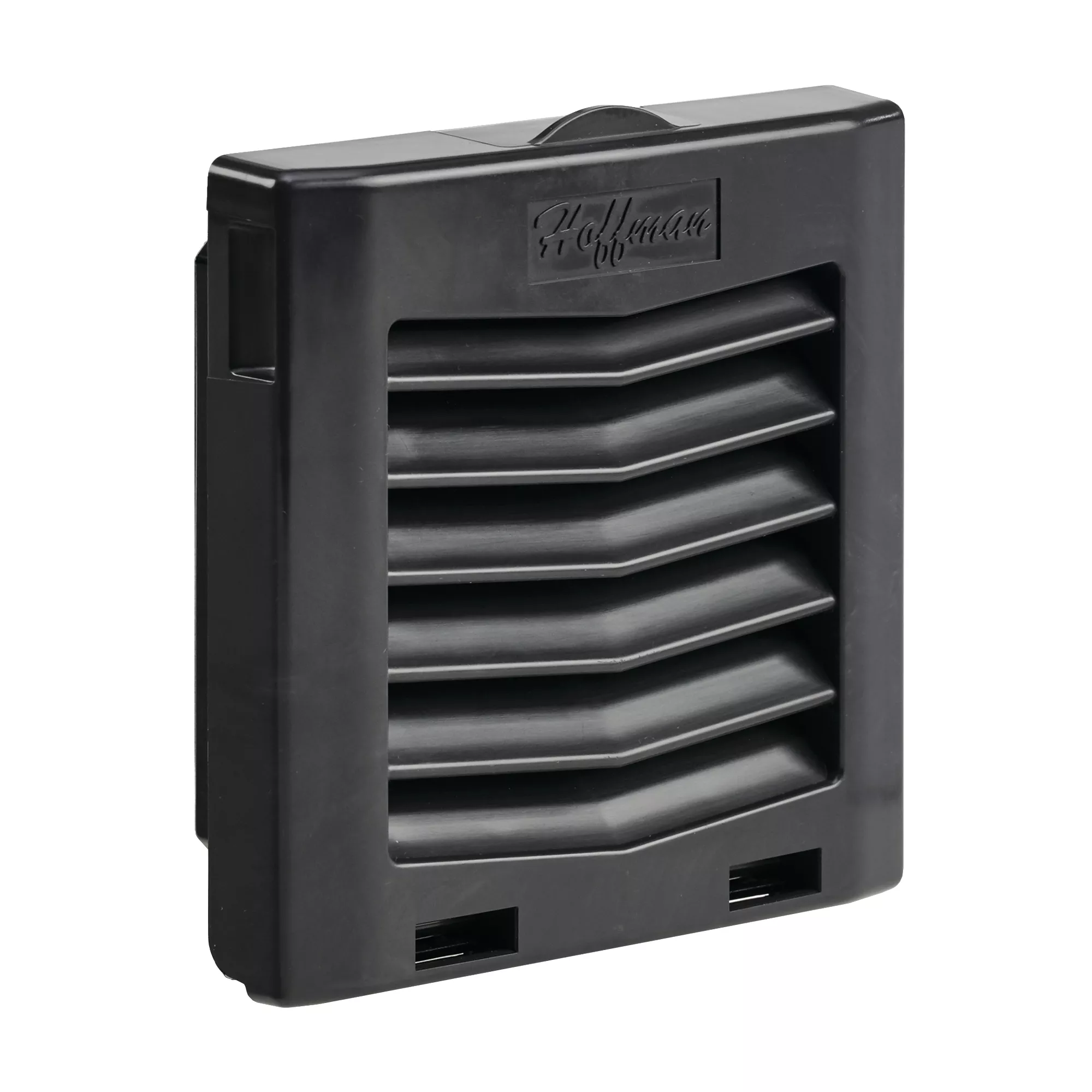

HG Filter Fan Exhaust Grilles have unique click-fit design which quickly install on enclosure sides. This HG Filter Fan Exhaust Grille fits HF04 fans, HG0400403 item measures 4-inch colored Black rated IP54.
Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Hinged grille remains attached after opening
Size range from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Specifications
Brand Name
nVent Hoffman
Item Name
Grille
Type
Filter Fan Exhaust
Flow Rate
21 – 484 ft³/min
Series
HG04
Width
4.44 in
Depth
2 in
Height
4.4 in
Material
Plastic
Color
RAL 9011 Black
Finish
Matte
For Use With
Hoffman HF04 Series Side-Mount Fresh Air Enclosure Cooling Filter Fans
Standards
UL Listed, cUL Listed, CE Marked, RoHS Compliant
Application
For Industrial Automation, Automotive Assembly, Package Handling Equipment, Food and Beverage Process Controls, Wind Energy Systems
UPC
783510343248
