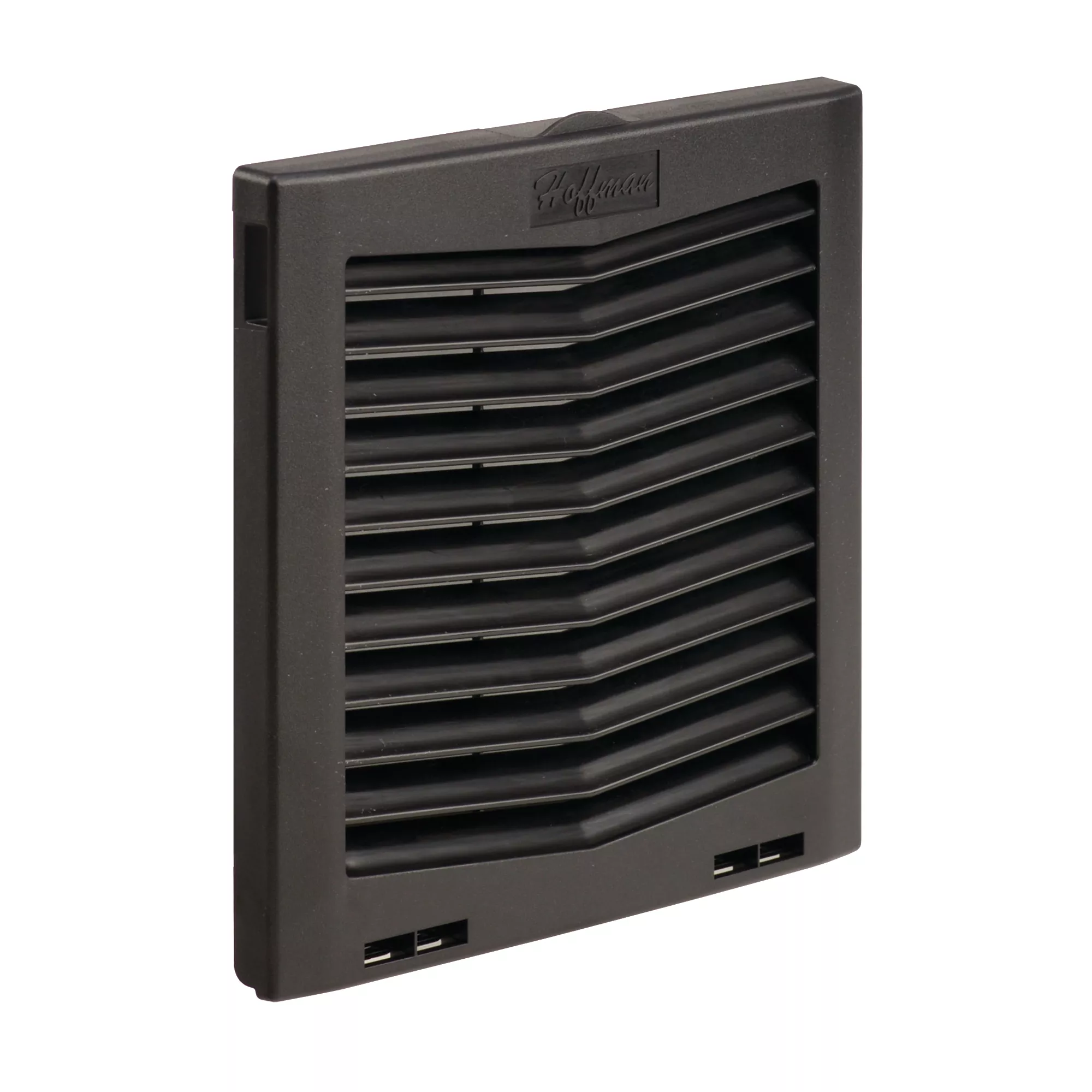

HG Filter Fan Exhaust Grilles have unique click-fit design which quickly install on enclosure sides. This HG Filter Fan Exhaust Grille fits HF09 fans, HG0900403 item measures 9-inch colored Black rated IP54.
Click-Fit design quickly installs into enclosure wall; no tools or screws required
Opens with the flick of a finger for easy filter replacement
Enclosure side wall mounting
Standard rope gasket provides proper seal to the enclosure
Similar cut-out sizes as other filter fan manufacturers
Hinged grille remains attached after opening
Size range from 4 inch (102 mm) to 13 inch (325 mm)
Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
Specifications
Brand Name
nVent Hoffman
Item Name
Exhaust Fan Grille
Grill Dimensions
209 mm W x 42 mm D x 208 mm H
Grill Material
Plastic
Color
Black
Duct Size
9 in
Mounting
Wall
Series/Model
MCLF
Air Flow
21 – 484 ft³/min
Finish
Matte
For Use With
HG09 Filter Fan
Standards
UL/cUL E482010 Listed, CE, EAC, RoHS Compliant, IP54
Application
Industrial Automation, Automotive Assembly, Package Handling Equipment, Food And Beverage Process Controls, Wind Energy Systems
UPC
783510343279
