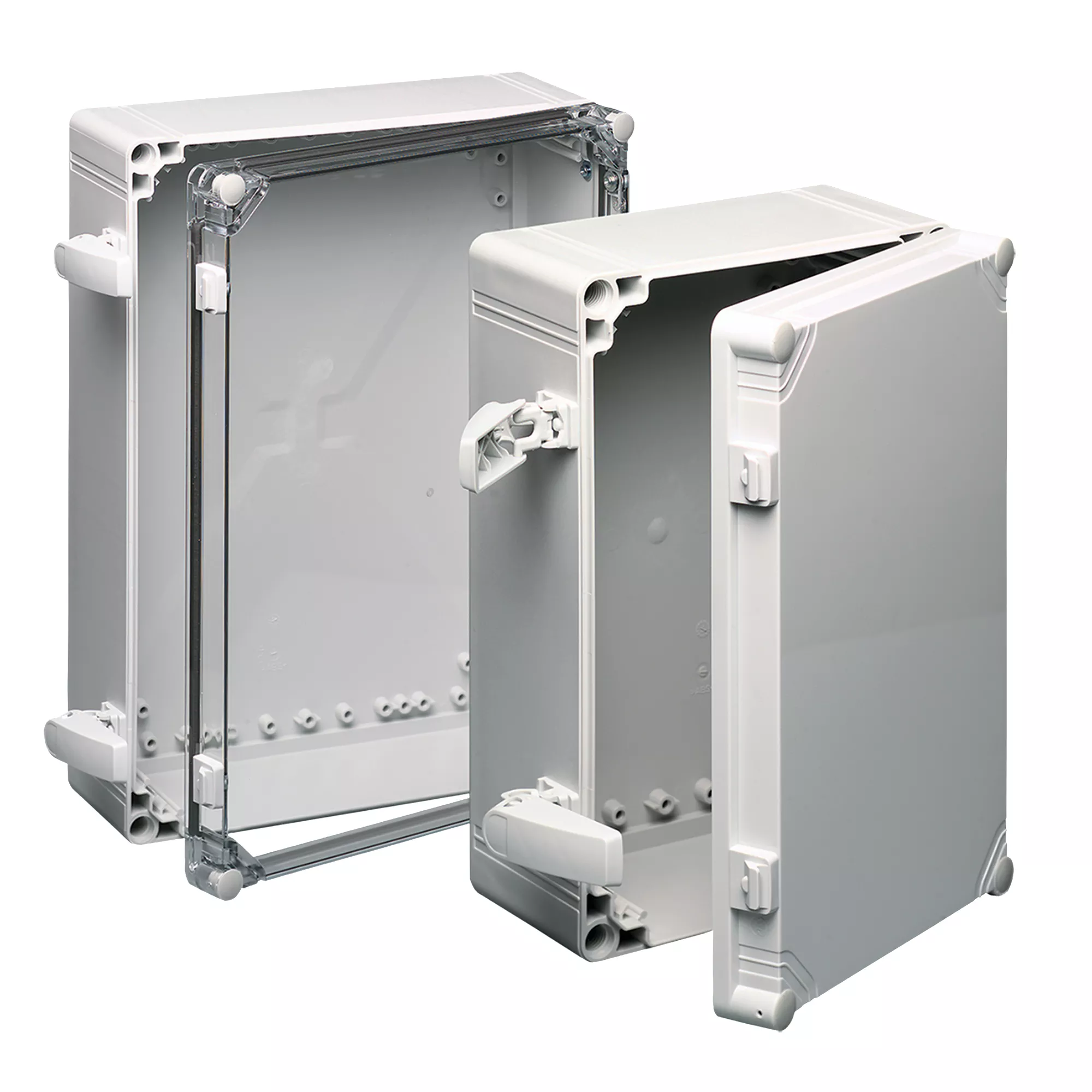

QLine I polycarbonate/ABS larger sized enclosures ideal in corrosive environments protecting controls. This QLine I Enclosure QR Clear Cover Type 4X, Q403018PCIQRCCR item measures 400x300x180mm with a material of Polycarbonate.
Body is impact-resistant polycarbonate for PCI series and&160;ABS for ABI series
Opaque and clear covers are impact-resistant polycarbonate for PCI, opaque covers are&160;ABS for ABI series
Polycarbonate and&160;ABS material is easily punched, drilled, filed or sawed
Mounting holes molded directly under cover screws
Molded internal pads for mounting optional panels, rails and other components
Molded internal rails for mounting adjustable-depth panel kit
Screws provided for mounting optional panel
Optional extension rings are molded polycarbonate
Cover includes a molded-in hole for wire lead
Seamless foam-in-place gasket assures water-tight and dust-tight seal
Specifications
Brand Name
Hoffman
Sub Brand
Qline™
Type
Feed-Through, Hinged Cover, Straight Section
Width
13.10 in
Depth
7.09 in
Height
11.81 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
Polycarbonate
Finish
Smooth
Color
Light Gray
Standards
Polycarbonate Enclosure, UL 508A Listed, Type 4, 4X, 12, 13, File No. E61997, cUL Listed per CSA C22.2 No 94, Type 4, 4X, 12, 13, File No. E61997, Enclosure flammability evaluated per UL 508A, NEMA/EEMAC Type 4, 4X, 12, 13, CSA File No. 42186: Type 4, 4X,
Application
For Use In Wet Locations, Classified Areas Such As Inside Paint Spray Booths, In Pharmaceutical Firms, Paint-Manufacturing Plants, Printing Plants Or Any Location Where Ignitable Dust, Fumes, Gases, Paint Residue, Paint Powder Or Corrosive Atmospheres May Be Present
UPC
783510159924
