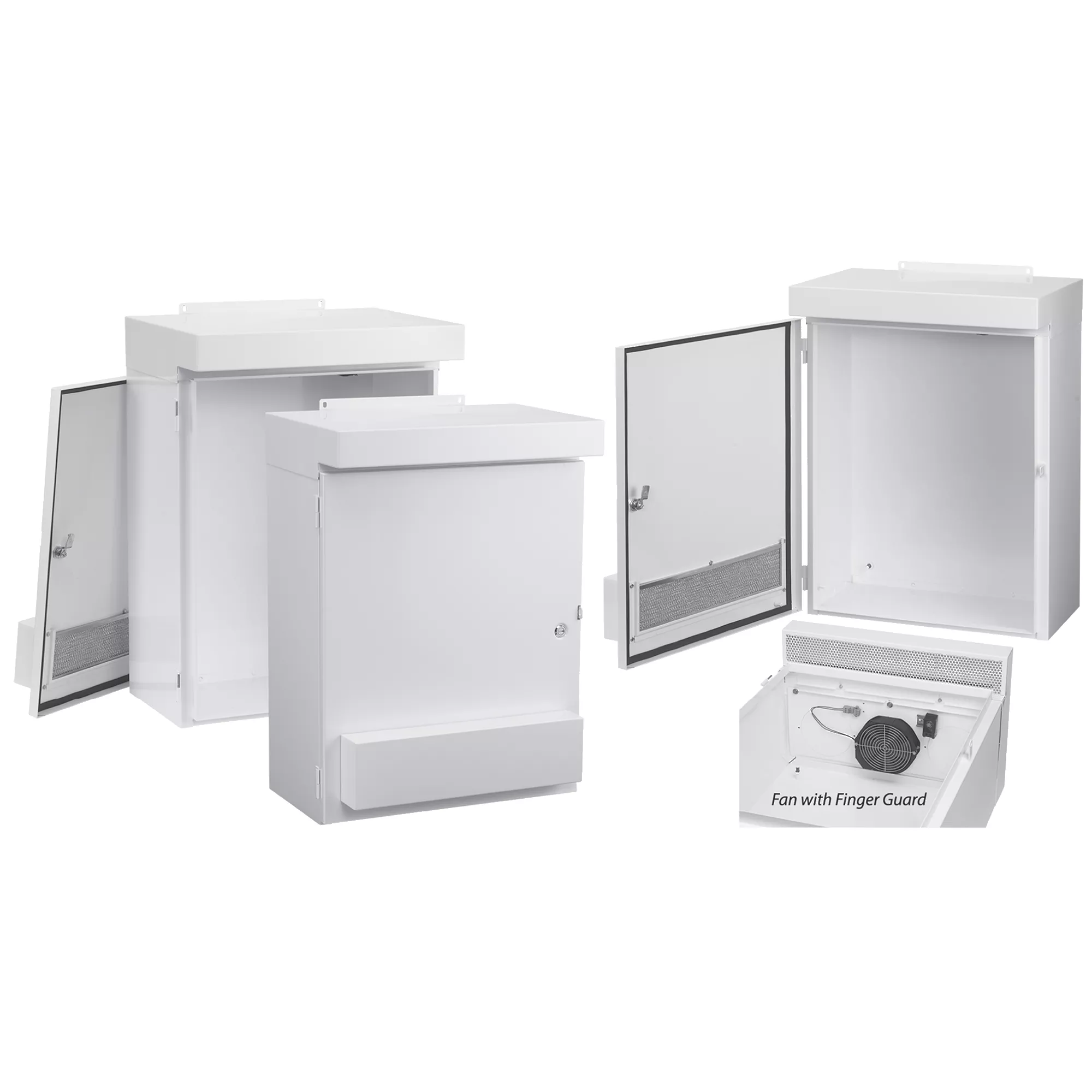

WeatherFlo outdoor enclosures feature a forced-air ventilation system for cooling high-heat components. This WeatherFlo with Fan Type 3R, WF40LP item measures 47.00×24.00×14.00 inches with a material of Steel colored White.
White polyester powder finish with low solar absorption
Integrated solar shield top and intake cover
Adjustable thermostat; 70-140 F (21-60 C)
Active cooling ventilation system with factory-installed fan and filter (115 VAC)
Terminal power connection for fan
Easily accessible and washable metal filter
Gasketed door with lift-off hinge design
Quarter-turn latch
External enclosure mounting brackets present
Collar studs provided to mount optional panel, sold separately
Specifications
Brand Name
Hoffman
Sub Brand
WeatherFlo
Item Name
Enclosure
Type
Outdoor
Width
24 in
Depth
14 in
Height
47 in
NEMA Rating
3R Weather-Resistant
Material
Steel
Finish
Galvanized
Color
RAL 9003 White
Standards
UL 508A Listed, Type 3R, File Number E61997, cUL Listed per CSA C22.2 No 94, Type 3R, File Number E61997, NEMA/EEMAC Type 3R, IEC 60529, IP32
Application
For Controls and Drives, Power Distribution
UPC
783510156541
