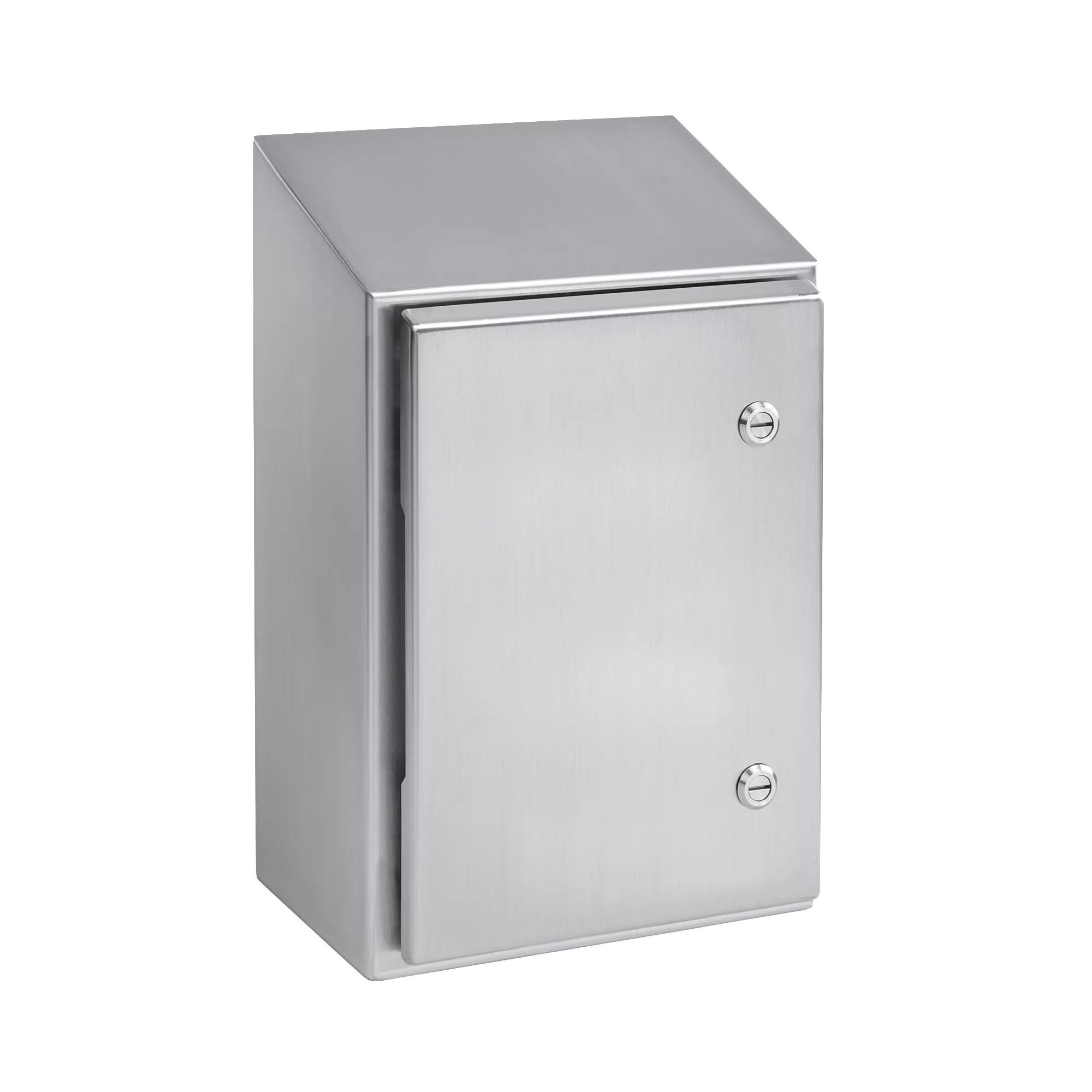

WaterShed designed for sanitary washdown environments, particularly food and beverage manufacturing. This WaterShed Wallmount Sloped Top 1/4-Turn Latch Type 4X, WS100804SS item measures 10x8x4 in. with a material of SS 304, Brushed.
Seams continuously welded and ground smooth
Smooth Type 304 stainless steel lift-off bullet-style hinges
Hinges are shielded by door
Hinged side of door has provisions to allow direct flushing of hinge area
20-degree sloped top facilitates runoff of water and cleaning solutions and prohibits the placement of objects on the top of the enclosure
97-degree door opening
Door edges are sloped 20-degrees at top and bottom edges to facilitate runoff
Slanted flange trough collar prohibits pooling of fluids along the top edge of the enclosure opening
Stainless steel quarter-turn latches furnished with flush slotted insert
Seamless foam-in-place gasket
Specifications
Brand Name
Hoffman
Sub Brand
Watershed
Type
Stainless Steel Wall Mounted Industrial Enclosures
Width
8 in
Depth
4 in
Height
10 in
NEMA Rating
4X Watertight, corrosion-resistant
Material
304 Stainless Steel
Finish
Brushed
Color
Unpainted
Application
Controls and Drives; Corrosive Environments; Hygienic Environments
UPC
783510301378
