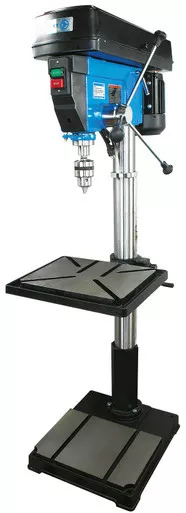

Jet 200357 – (JDP-22F) 22″ 1-1/2 HP 12 Speed Drill Press

Original price was: $1,889.99.Current price is: $1,223.65.

Sale!
SKU: JET200357 Category:
Share
  • Powerful 1-1/2 horse power motor
  • Full 22″ swing for easy drilling of larger work pieces
  • 12 speed capability allows for a broad assortment of drilling applications
  • Safety on/off switch with removable lock key
  • Fully hinged belt and pulley cover and quick adjust motor mount permit fast changes of spindle speed
  • Worktable with quick release clamp rotates and tilts to 45° right and left
  • Slots in worktable and base permit easy clamping of the work piece
  • Positive depth setting mechanism uses a threaded rod and two lock nuts for accuracy
  • Built-in work lamp with separate switch (use outdoor rated bulb, not included) Standard Equipment: Drill chuck and key
  • Swing : 22″
  • Type: Floor Model
  • Chuck Size : 3/4″
  • Drilling Capacity : 1-1/4″
  • Spindle Travel : 4-1/2″
  • Spindle Distance to Base : 49″
  • Max. Spindle Distance to Table : 29″
  • Table Diameter : 16-1/2″ x 18-3/4″
  • Table Tilt (Right and Left) : 0 – 45°
  • Spindle Taper : MT3
  • Column Diameter : 3-5/8″
  • Number of Spindle Speeds : 12
  • Range of Spindle Speeds : 180 – 4,200 RPM
  • Overall Height : 69-1/4″
  • Base Size : 19-5/8″ x 22-1/2″
  • Motor : 1.5 HP, 1 ph, 115/230 V, 10.0/5.0 A, Pre-wired 115 V
