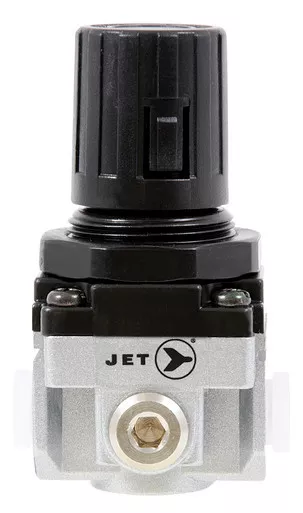

Jet 408817 – (ARM18) Air Regular 1/8″ NPT – Miniature

Original price was: $34.39.Current price is: $25.22.

Sale!
SKU: JET408817 Category:
Share
  • Industrial construction Aluminum die cast body (9 times safer than a plastic body). Allows use at higher temperatures and better tightening of piping without stripping the threads
  • Used to maintain steady outlet pressure unaffected by variations in inlet pressure
  • Works on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet and can be installed in any position
  • Regulator with Non Raising “Press to Lock” adjusting knob
  • Maximum Working Air Pressure: 220 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Panel Mounting
  • Conforms to ISO 6953-1
  • Wetted Components: Aluminum, brass, steel, acetal, stainless steel and nitrile
  • Inlet pressure 105 PSI (7 BAR), supply pressure 90 PSI (6 BAR) and pressure drop 17 PSI (1 BAR)
  • Max. Flow : 21 cfm (600 LPM)
  • Port Size : 1/8″
  • Pressure Gauge Port Size : 1/8″
  • Height : 3.19″ (81 mm)
  • Width : 1.57″ (40mm)
