Jet 408856 – (AFRLMS12) 3 PC Air Filter, Regulator and Lubricator 1/2″ NPT – Standard

Original price was: $286.39.Current price is: $217.28.

Sale!
SKU: JET408856 Category:
Share

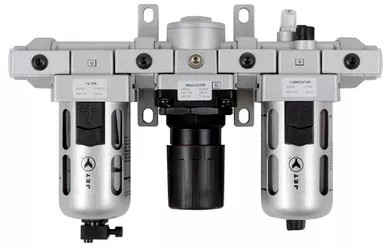

  • The filter, regulator and lubricator is a 3 piece assembly including all 3 individual components. The 3 components are attached in series using spacers and piping adaptors, which make the individual components easily removable / mountable without disturbing the pipe line. Comes complete with wall mounting bracket
  • Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life
  • Air regulator governs air flow to desired PSI air pressure
  • Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool
  • Maximum Working Air Pressure: 145 PSI
  • Ambient Temperature: 0-60°C (32-140°F)
  • Modular Mounting
  • Vertical Mounting
  • Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile
  • Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)
  • Max. Flow : 123 cfm (3,500 LPM)
  • Port Size : 1/2″
  • Pressure Gauge Port Size : 1/8″
  • Bowl Size (Filter) : 1.5 oz (44 ml)
  • Bowl Size (Lubricator) : 5.17 oz (152 ml)
  • Height : 11.02″ (280 mm)
  • Width : 12.00″ (305 mm)
