Product Description

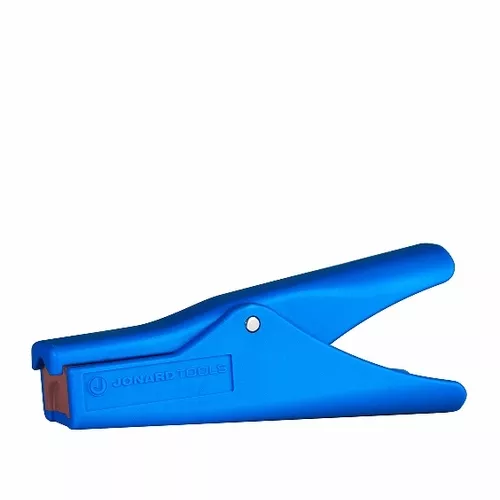

JONARDCSS-5610 Coax Stub End Stripper (6Mm/10Mm) 811490019652The CSS-5610 is a coaxial cable stripper specifically designed to strip the stub end of a coax cable in a wall outlet, exposing 6 mm of braid and 10 mm of the center conductor, which eliminates the need to run new cable. This coaxial cable stripper features the following:Easy to use: Simply insert cable, rotate like a screwdriver, and remove to stripWill not cut or damage the braid or score the center conductorHigh carbon steel blades last for over 5,000 strips on each sideHook and loop strip on bottom of tool is used to fold back braid on cable after being strippedCan be used with other blade cartridges, such as the CSS-105/110/115/120/130/135Replacement cartridge for this tool is: CSS-125Blade Replacement Instructions:To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out.To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.SpecificationsCable TypeCOAXCable SizeRG59 and RG6Strip Length6 mm braid and 10 mm center conductorLength4″ (100 mm)Weight0.13 lb (58.97 g)UPC No.811490019652
