Product Description

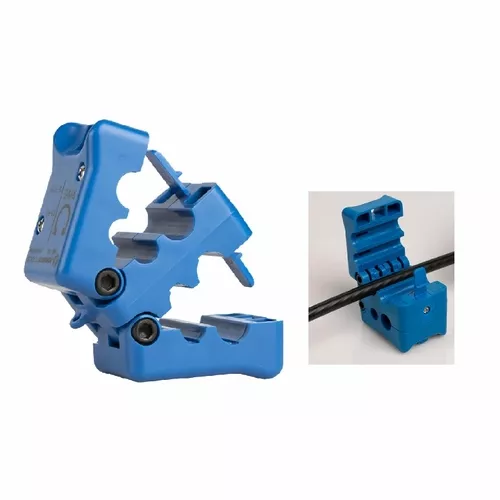

JONARDMS-336 Mid Span Slit & Ring Tool (7.9mm – 11.0mm) 811490014770The PATENTED MS-336 Mid Span Slit and Ring Tool is designed to provide easy access to optical fibers in thin walled outer jacketed cables. The MS-336 is an extension of the MS-326 series tool targeting larger cables such as Cornings Minixtend HD 288 and 432 fiber count cables.Consists of 2 precision slitting grooves and 2 precision ring grooves. Grooves ranging in sizes from 7.9-8.2 & 10.7-11 mmOne side of tool performs Radial/ring cuts and the other side slits the cable (longitudinal cut)Indicator line on top of the unit indicates the position of the blade for accurate slitting and ringingThis tool is specifically designed for use on Corning Minixtend HD 288F and Minixtend HD 432F cable. Both with FastAccessReplacement blades available, part number MS-336RBBlades last at least 5,000 slits/cutsGroove Sizes: 7.9-8.2 | 10.7-11.0 mmSpecificationsCut TypeSlit, RingNumber of Slitting Grooves4Number of Ringing Grooves4Cable TypeCorning’s Minixtend HD 288 and 432Cable Diameter7.9 – 11 mmDimensions2.3″ x 1.5″ x 2.2″ (58.4mm x 38.1mm x 55.9mm)Weight0.250 lb (113 g)UPC 811490014770
