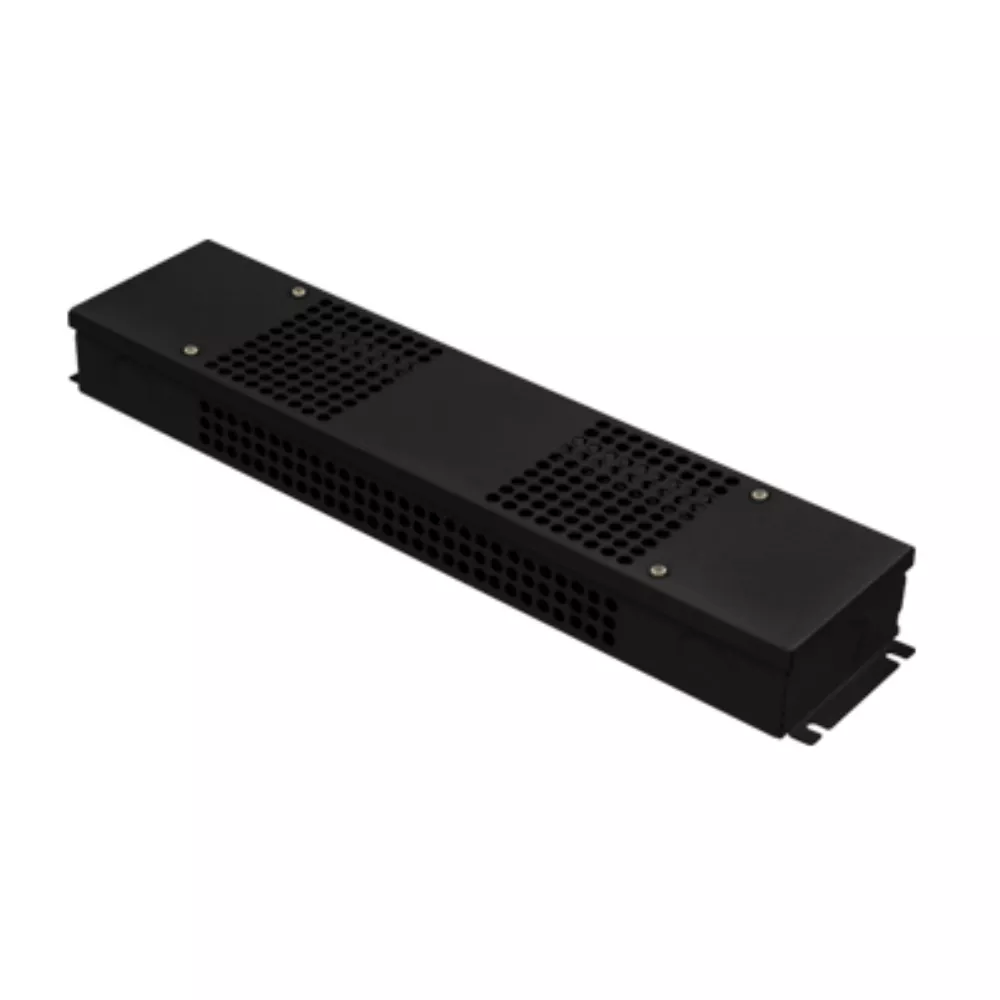

The CDC driver is a full solution supporting forward & reverse phase dimming, ELV, TRIAC as well as 0-10V dimming types. The CDC driver is a 24V dimmable electronic LED hardwire box with 30W, 60W and 96W options for maintaining constant voltage.
Specifications
| Brand Name | Liteline | Item Name | Electronic LED Driver |
| Type | 5-In-1 Dimmable | Color | Black |
| Input Voltage | 100 – 277 VAC | Input Current | 0.5 A |
| Output Voltage | 24 VDC | Output Current | 1.25 A |
| Output Power | 30 W | Material | Aluminum |
| Input Power | <5 W | Frequency Rating | 47 – 63 Hz |
| Efficiency (%) | 79 at 120 VAC, 80 at 277 VAC | Power Factor | 0.99 at 120 VAC, 0.95 at 277 VAC |
| Length | 13-5/32 in | Width | 3-1/32 in |
| Height | 1-7/16 in | Temperature Rating | -40 to 60 °C |
| Degree of Protection | IP20 | For Use With | 24 V LED Lighting Fixtures |
| Standards | cULus Listed, Class 2 | UPC | 771250840059 |
