MACLEAN/JOSLYN PA288 FIGURE 8 CLAMP ***min order 25***

Product Description

---

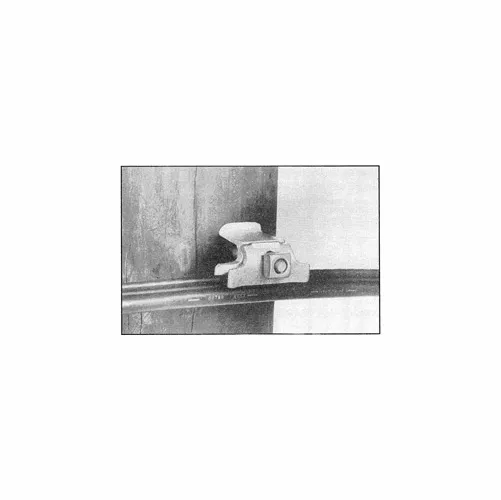

MACLEAN POWER SYSTEMS /JOSLYN HUBBELL POWER SYSTEMSPA288 FIGURE 8 CLAMP ***min order 25*** NEWClamps, Cable Suspension, CornerHot Dip GalvanizedThe PA288 clamp is designed to accommodate inside or outside angles from 10 degrees to 35 degrees. Clamp groove ends are generously rounded to prevent damage to 1/4-inch bare or insulated messenger installed at angles up to 35 degrees. The inner, pole side clamp section is tapped to accept a 5/8-inch diameter bolt and includes a curved surface with spurs to penetrate into the pole and provide a stable installation. Thedesign provides a 1-5/8-inch clearance from the surface of the pole to the cable and 3-3/4-inch clamping surface length.Catalog No.PA288 144 (Lbs. Per 100 Pcs.)JOSLYN HUBBELL POWER SYSTEMSPA288 FIGURE 8 CLAMP ***min order 25*** NEW
