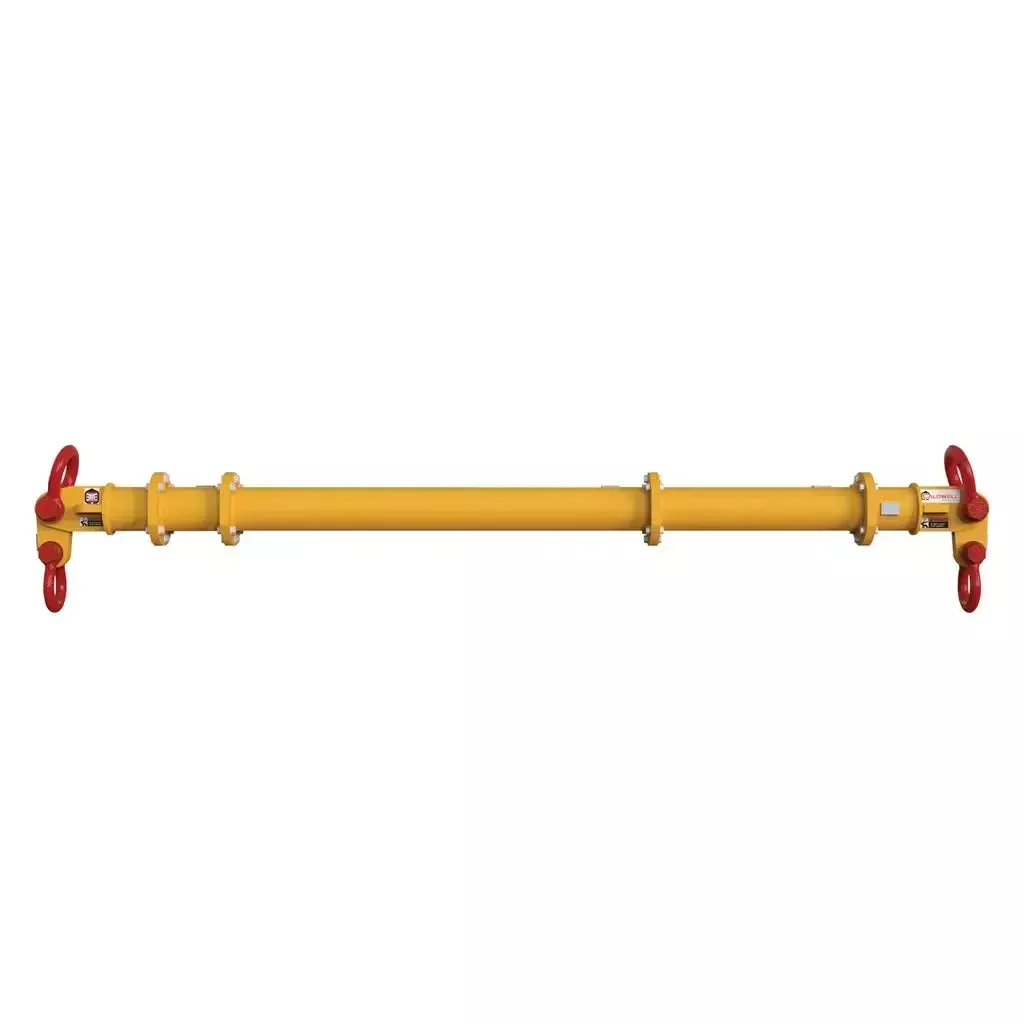

Model DM170 2-Point 170-Metric Ton Spreader Beam System

Product Description

Configure in spreads of 6′ to 59’L. Order Spreader Sections, End Fittings, and Drop Links to build the beam you want. Or choose a Starter Set and save. One bolt kit included with each End Fitting and Spreader Section. Additional Bolt Kits can be ordered separately.

• Handles loads up to 170 metric tons
• DM170 assembly designed for a 120-ton, carbon, bolt-type top shackle and a 85-ton, carbon, bolt-type bottom shackle

Key Features & Benefits

• Up to 170-Metric-Ton Capacity for demanding heavy-lift applications.
• Configurable Spans from 6 ft. to 59 ft. to accommodate a wide range of load sizes.
• Modular Design allows beam lengths and capacities to be adjusted using interchangeable components.
• Easy Transportation and Storage with a maximum component length of only 20 ft.
• Lightweight Alternative to large fixed spreader beam systems.
• Bolt-Together Construction for simplified assembly and field reconfiguration.
• Customizable Configurations using end fittings, drop links, and spreader sections.
• ASME B30.20 and BTH-1 Compliant Design for confidence in critical lifts.
• Ideal for Heavy Industrial Projects, including offshore, energy, infrastructure, and manufacturing applications.
• Reduced Equipment Inventory Requirements by replacing multiple fixed-span beams with one modular system.

System Components & Weights
