The Raychem HAK-C-100 connection system serves as a component for power connection, splice, tee, or end seal / end termination in tank heating and temperature maintenance applications with the HAK-JB3-100. It is FM approved for use with Raychem HBTV, HQTV, HXTV and FHP electric heating cables in Class I, Division 1 hazardous locations. It is also CSA certified for use with Raychem BTV-CT, QTVR-CT, XTV-CT, LBTV2-CT and VPL-CT electric heating cables in Class I, Division 1 locations.
Simple and fast to install
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Item Name
Power Connection Kit
Type
Power Connections for Parallel Heating Cables
Color
Gray
For Use With
HBTV, HQTV, HXTV and FHP Heating Cables

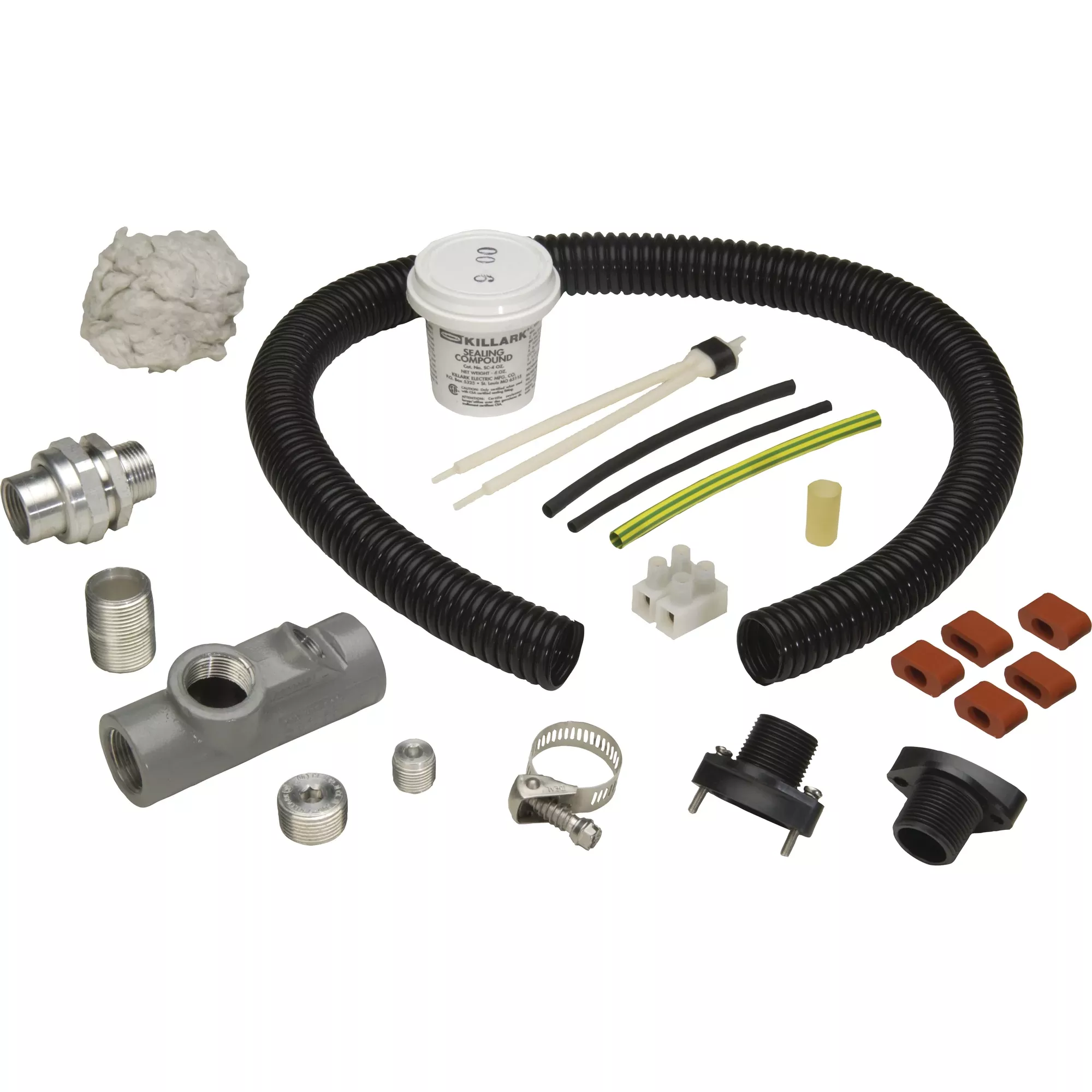

Includes
(1) Nipple and Plug Subassembly Sealing Fitting, (1) Union, (1) Packing Fiber, (1) Sealing Compound, (1) Tubing Clamp, (1) Compression Gland with Screws, (1) Compression Gland with Threaded Inserts, (5) Grommets (B,C,E,K,R), (1) Flex Tube, 1 Terminal Block, (2) Black Heat-Shrinkable Tubes, (1) Clear Yellow Heat Shrinkable Tube, (1) Green/Yellow Tube, (1) CS-100 Core Sealer
Standards
CSA Certified, FM Approved, Class I, Division 1, Groups B, C, D, Class II, Division 1, Groups E, F, G, Class III
Application
Process Temperature Maintenance; Offshore/Maritime Winterization; Pipe Freeze Protection
UPC
715629005090
