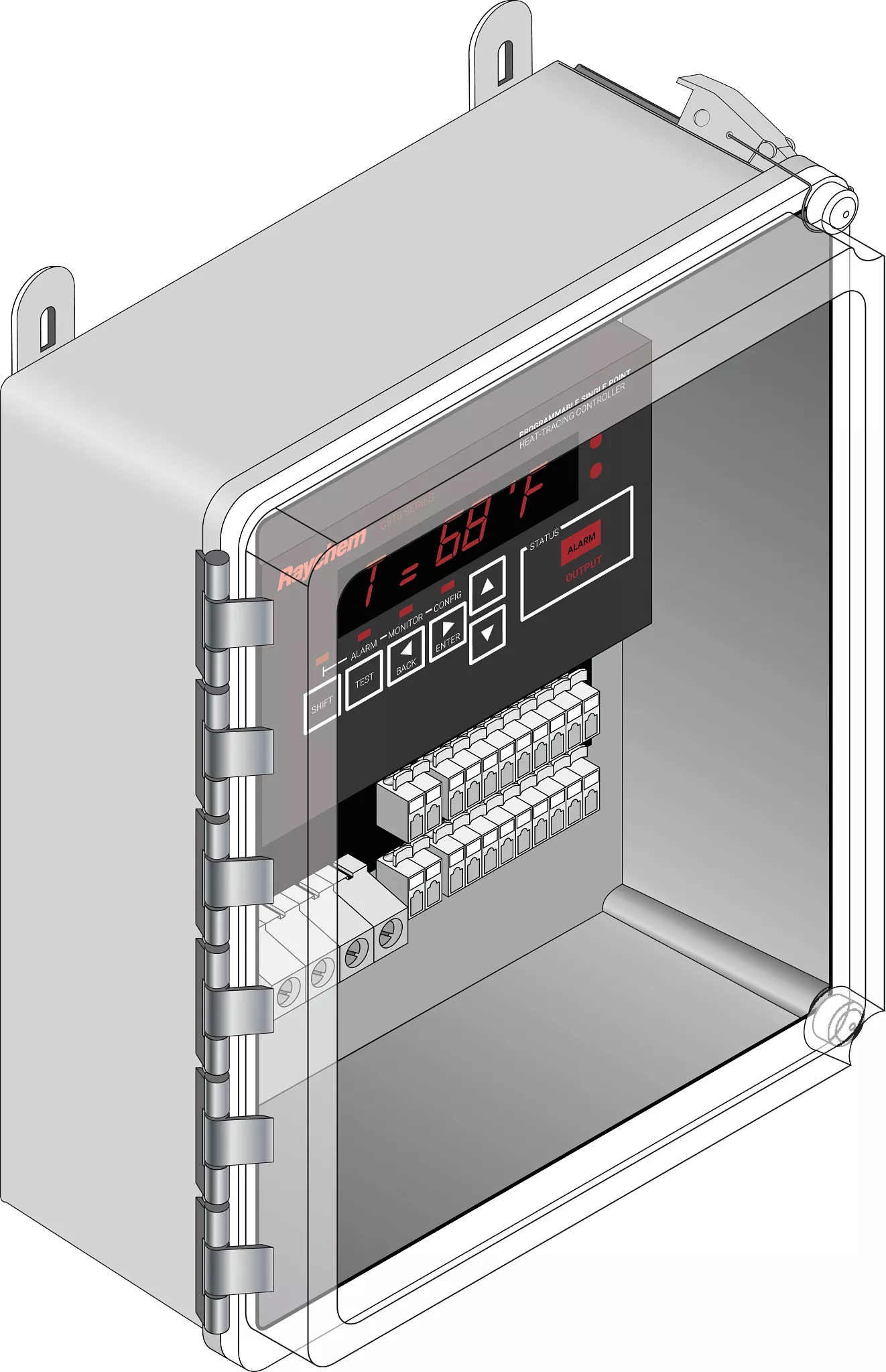

For control and monitoring of electric heat tracing in commercial applications. Controls a single circuit with a 2-pole EMR, 2-wire isolated RS-485 communication, nonhazardous area.
Simple to install, program and operate, right from the box, with no field assembly
Alarm conditions and programming settings are easy to interpret on the full-text front panel
Extensive control, monitoring, alarm, communications and protocol gateway capabilities
Supports Modbus® protocol and includes an RS-485 communications interface
Enclosure: NEMA 4X, FRP
Reliable during long life: 2 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Item Name
Heat Tracing Control System
Type
Single Point, Compact, Microprocessor Based
Voltage Rating
100 – 277 VAC
Amperage Rating
30 A
Display Type
LED
Control Range
0 – 200 °F
Sensor Type
100 O Platinum RTD
Frequency Rating
50/60 Hz
Wire Size
22-8, 28-12 AWG
Connection
Screw and Spring Clamp Terminal
Housing Material
Fiberglass Reinforced Polyester
Width
8-1/2 in
Height
10-1/2 in
Depth
6-1/4 in
Mounting
Surface
Degree of Protection
Type 4X
Environmental Conditions
0 – 90% Relative Humidity
Temperature Range
-40 to 140 °F
Includes
Isolated 2-Wite RS-485 Communication Board
Standards
CSA Certified
Application
For Commercial Heating
UPC
715629007339
