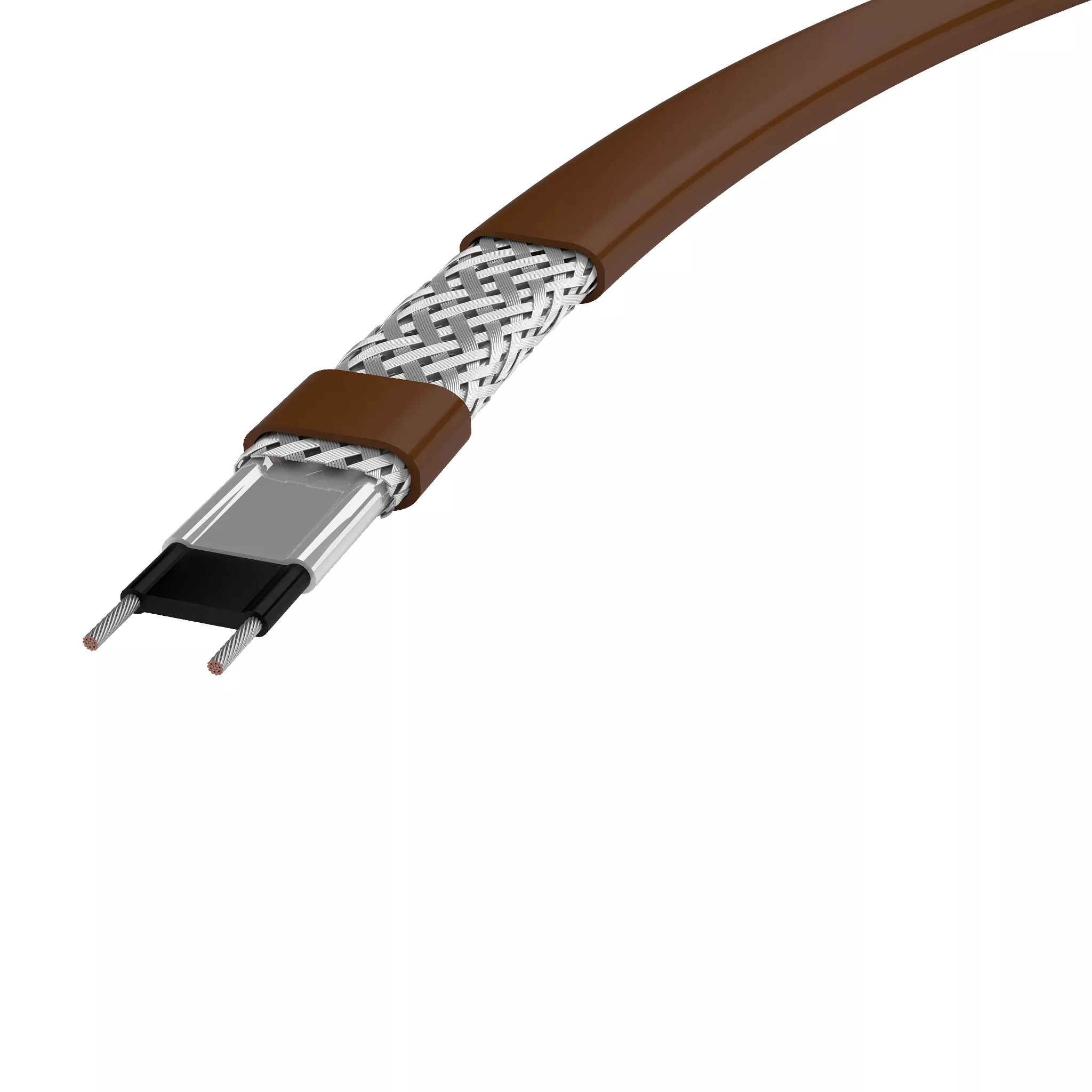

The QTVR family of Raychem self-regulating electric heat trace cables are designed for pipe heat tracing in industrial applications. QTVR heating cables can provide process temperature maintenance up to 225°F (110°C) and can also be used for pipe freeze protection in systems having high heat loss.
Simplified design for hazardous areas: unconditional T4 class
Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Sub Brand
RAYCHEM
Item Name
Heating Cable
Type
Self Regulating
Number of Conductors
2
Voltage Rating
100 – 130 VAC
Series
QTVR
Core
Self-Regulating Conductive Core
Conductor Size
16 AWG
Conductor Material
Nickel Plated Copper
Wattage
10 W/ft
Minimum Bend Radius
1/2 in
Temperature Rating
225 °F Maximum Exposure, -40 °F Minimum Installation
Jacket Material
Fluoropolymer
Color
Brown
Length
100 ft
Standards
CSA Certified, FM, IECEx Approved
Application
For Pipe Heat Tracing in Industrial Applications and Both Non-Hazardous and Hazardous Locations
UPC
715629005458
