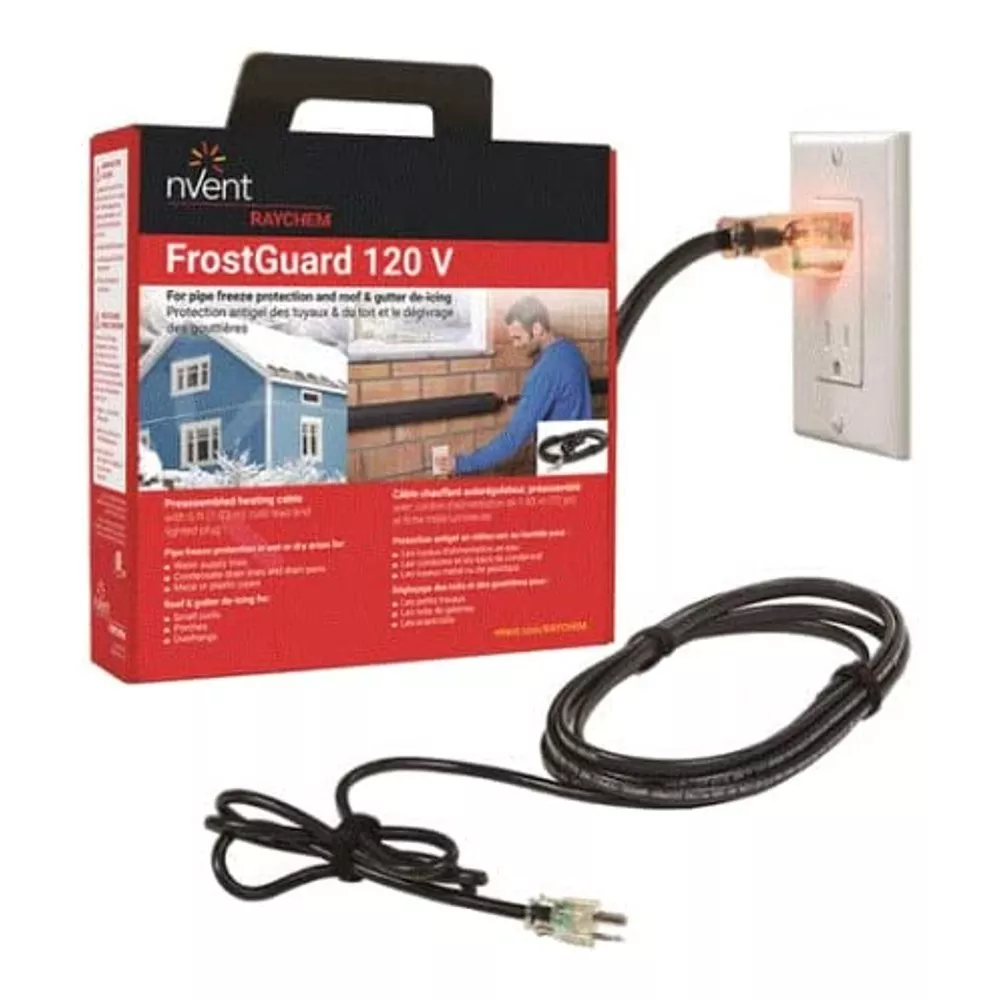

Raychem FrostGuard energy-efficient preassembled heating cable offers an easy-to-use solution to prevent ice buildup and the damage it can cause.FEATURES:•Easy to design and install; simply fix to the roof, gutters and downspouts, and plug into the GFI-protected electrical supply.•Can be used on roofs made from all types of materials, including shake, shingle, rubber, tar, wood, metal and plastic•Safe: no overheating possible: even when overlapped or closely spaced•Energy-efficiency through self-regulating technology•Ideal for smaller jobs such as roof and gutter de-icing on porches and overhangs•Maintenance-free: no moving parts
Simple to design: 120 V version in 6, 12, 18, 24, 36, 50, 75 and 100 ft lengths each with a 6 ft power cord and 3-prong, grounded, lighted plug to show the system is on
Easy to install: pre-assembled with a plug and cold lead to avoid the need for connection by an electrician
Energy efficient and safe: self-regulating cable, no overheating possible even when overlapped or closely spaced
Reliable during long life: 2 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Sub Brand
Frostguard
Item Name
Heating Cable
Type
Self Regulating, Preassembled
Number of Conductors
2
Voltage Rating
120 V
Resistance
Variable (Self-Regulating)
Series
FG1-12P
Core
Self-Regulating Conductive Core
Conductor Material
Nickel-Plated Copper
Wattage
6 W/ft
Minimum Bend Radius
5/8 in
Temperature Rating
150 °F Maximum Exposure, 5 °F Minimum Installation
Insulation Material
Modified Polyolefin
Jacket Material
Modified Polyolefin
NEMA Color
Black
Color
Black
Length
12 ft
Includes
6 ft Cold Lead, Lighted Plug, 3-Prong, Grounded
Standards
CSA Certified
Application
For Pipe Freeze Protection, Roof and Gutter De-Icing
UPC
715629008114
