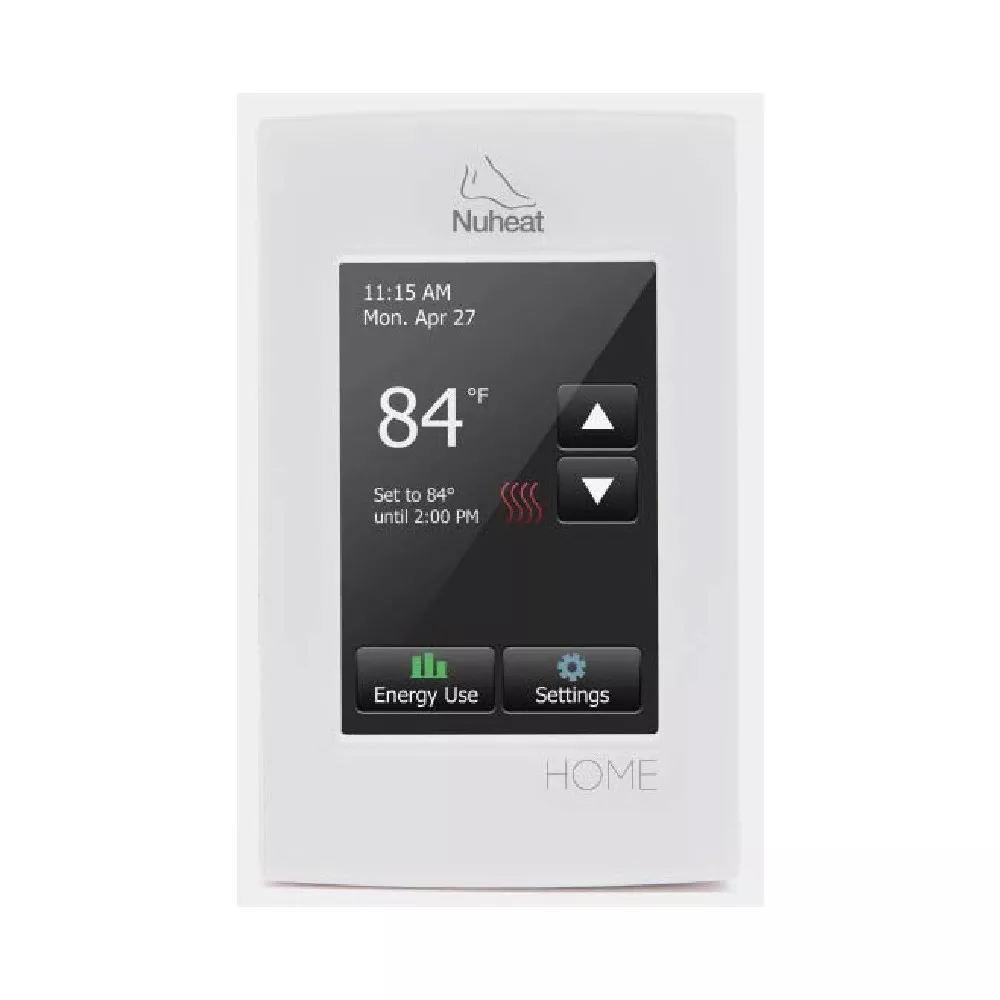

PRODUCT DETAILS The Nuheat HOME thermostat is a 7-day programmable electric floor heating thermostat exclusively designed by Nuheat. programmable electric floor heating thermostat exclusively designed by Nuheat. Product Description: -Home -Floor Heating -Home Touchscreen Programmable Dual-Voltage Thermostat -3.5″ Color touchscreen -Energy usage monitor -VOLTAGE: 120/240 -7 day programming -Built-in GFCI -No battery required -3-year manufacturer’s warranty
Color touchscreen
Easy to operate, intuitive navigation, access energy usage
Programmable, 7-day
3 year product warranty available, maintenance free
Specifications
Brand Name
nVent NUHEAT
Sub Brand
Nu-heat
Item Name
Programmable Thermostat
Type
Floor Heating Electronic Thermostats
Voltage Rating
120/240 VAC
Amperage Rating
15 A
Maximum Load
1800 W at 120 V, 3600 W at 240 V
Display Type
3.5 in Color Touchscreen
Resolution
320 x 480P
Sensor Type
10k NTC Double Insulated Thermistor
Series/Model
Home
Frequency Rating
50/60 Hz
Color/Finish
High Gloss White Frame
Width
2.99 in
Height
4.72 in
Depth
2.05 in
Temperature Range
50 °F Minimum Installation, 194 °F Ambient
Warranty
3 yr
For Use With
Floor Heating System
Includes
15 ft Sensor Wire
Standards
cULus Listed
Application
For Tile, Stone and Laminate/Engineered Wood Floors
UPC
620713001721
