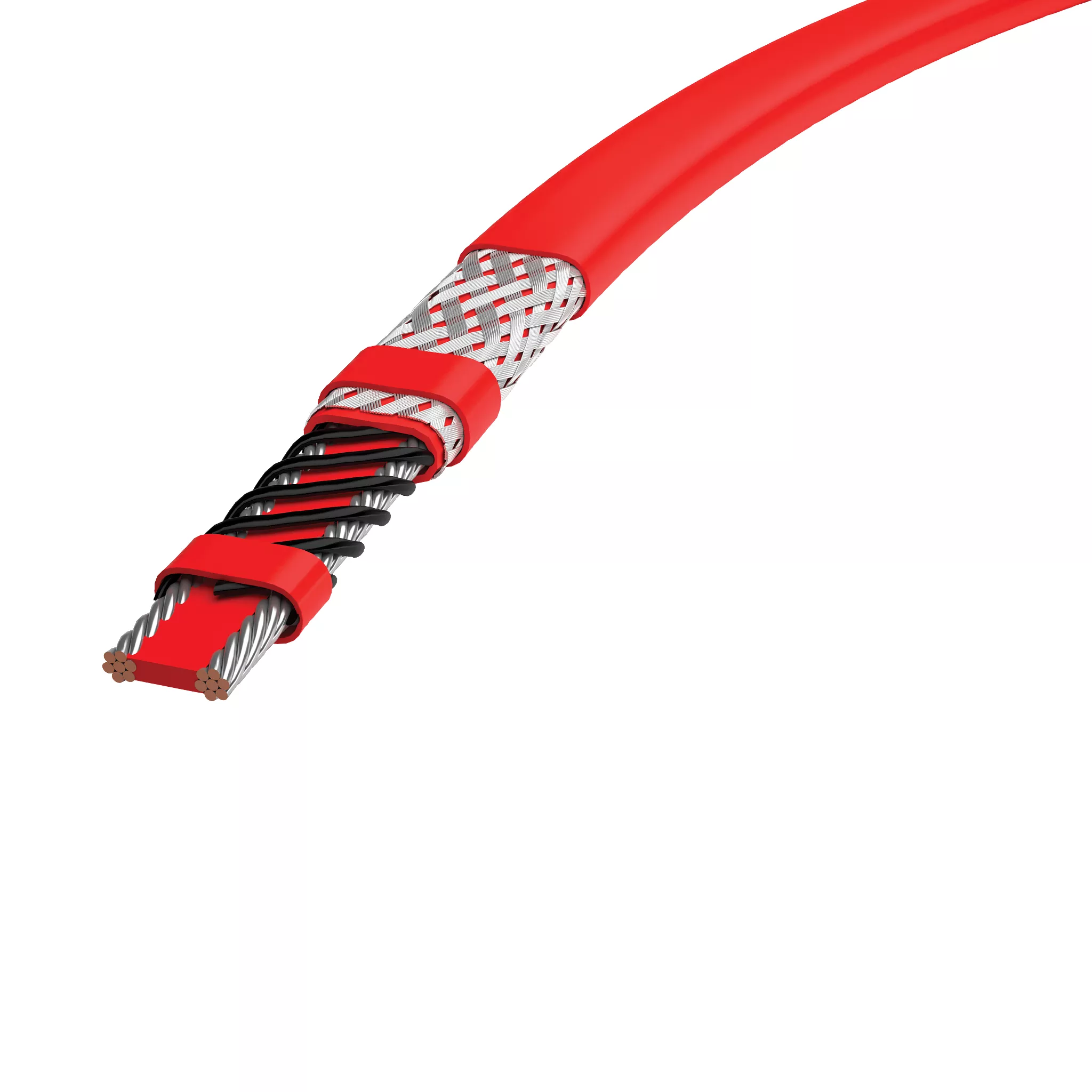

nVent RAYCHEM XTVR self-regulating trace heating cables are mainly used for freeze protection of pipes and vessels that require steam cleaning and process temperature maintenance, up to 302 °F/150 °C. They withstand intermittent exposure to 482 °F/250 °C. The fluoropolymer outer jacket (-CT) provides high chemical resistance against aggressive organics and corrosives.
High power retention (HPR) heating core
Power retention: At least 95% after 10 years
Design life: 30 years or more depending on application
Simplified design in hazardous area: T3 Unconditional or T6-T4 System classification
Longer circuit lengths due to larger cross section conductors
Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
nVent Raychem
Type
Self-Regulating
Conductor Material
Tin Plated Copper
Color
Red
Application
Formed 14-gauge steel. Continuously welded seams. Larger sizes include door and body stiffeners. Welded brackets provide for enclosure mounting. Formed lip on door and enclosure exclude flowing liquids and contaminants. Cutouts and holes are provided to suit the flange handle operating mechanism. Continuously hinged doors may be removed by pulling the stainless steel hinge pin. Door is secured with easily operated stainless steel clamps. Cover interlock bracket is welded to the door. Collar studs are provided for mounting inner panels. A removable 12 gauge inner panel is included. Seamless poured-in place gasket. A bonding stud is provided on the door and a grounding stud is provided in the enclosure. A literature pocket is provided for the inside of the door.
UPC
715629421623
