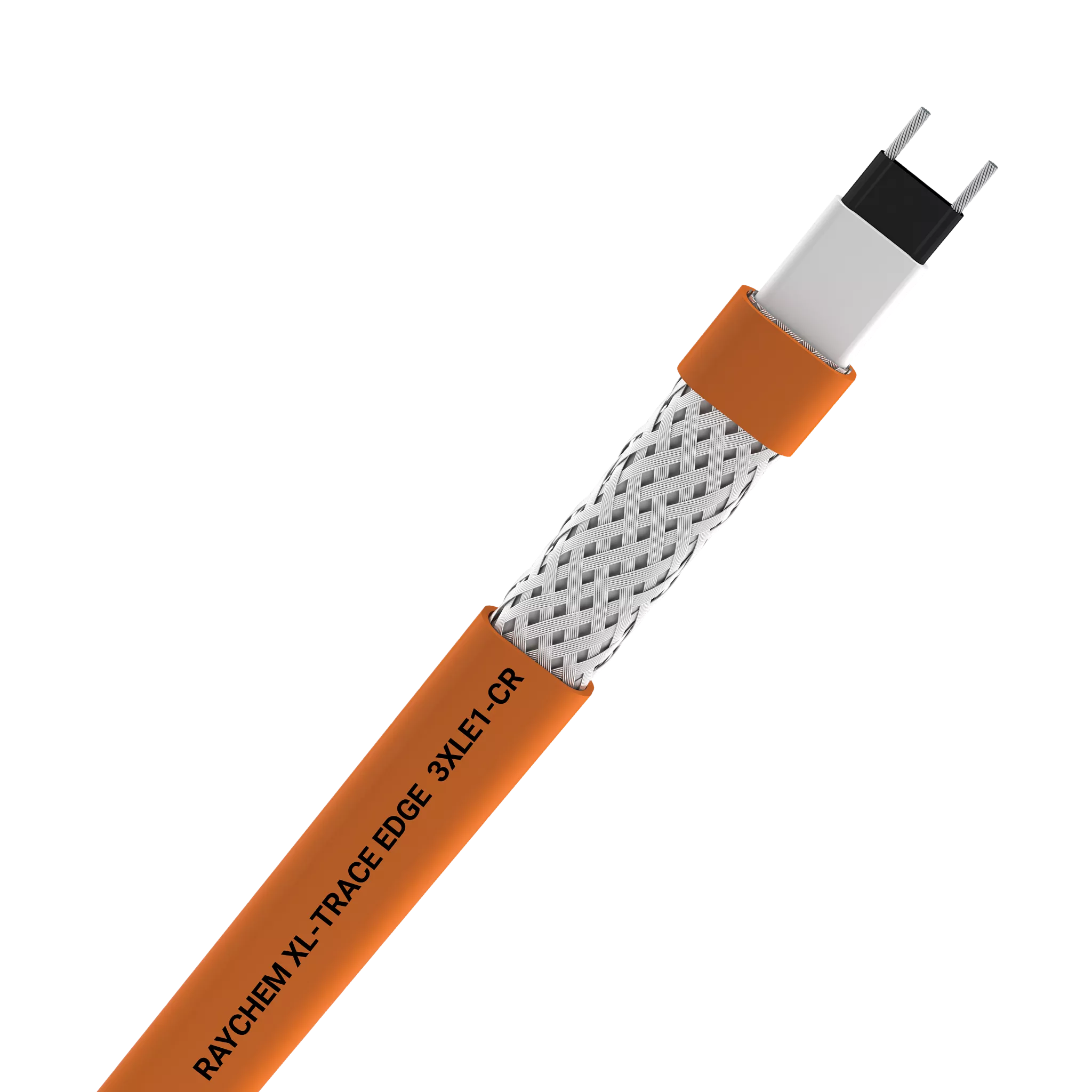

nVent RAYCHEM XL-Trace Edge is designed for pipe freeze protection and flow maintenance in the following applications: • Freeze protection of general water piping (aboveground and buried) • Freeze protection of fire sprinkler system piping, including sprinklers • Flow maintenance of greasy waste lines (aboveground and buried) • Flow maintenance of fuel lines (aboveground) The heating element in the XL-Trace Edge heating cable consists of a continuous core of conductive polymer extruded between two copper bus wires. The XL-Trace Edge heating cable regulates its power output in response to pipe temperature changes. This self-regulating technology allows XL-Trace Edge heating cable to be overlapped or installed on plastic pipes without overheating.
Specifications
| Brand Name | Raychem | Sub Brand | XL-Trace |
| Item Name | Heating Cable | Type | Self Regulating |
| Voltage Rating | 120 V | Core | Conductive |
| Conductor Size | 16 AWG | Conductor Material | Nickel-Plated Copper |
| Wattage | 3 W/ft | Minimum Bend Radius | 1/2 in |
| Temperature Rating | 154 °F | Insulation Material | Modified Polyolefin |
| Jacket Material | Modified Polyolefin | Standards | cULus Listed |
| Application | For Pipe Freeze Protection and Flow Maintenance of Grease Waste Lines (Above and Below Ground) and Fuel Lines (Above Ground) | UPC | 715629421418 |
