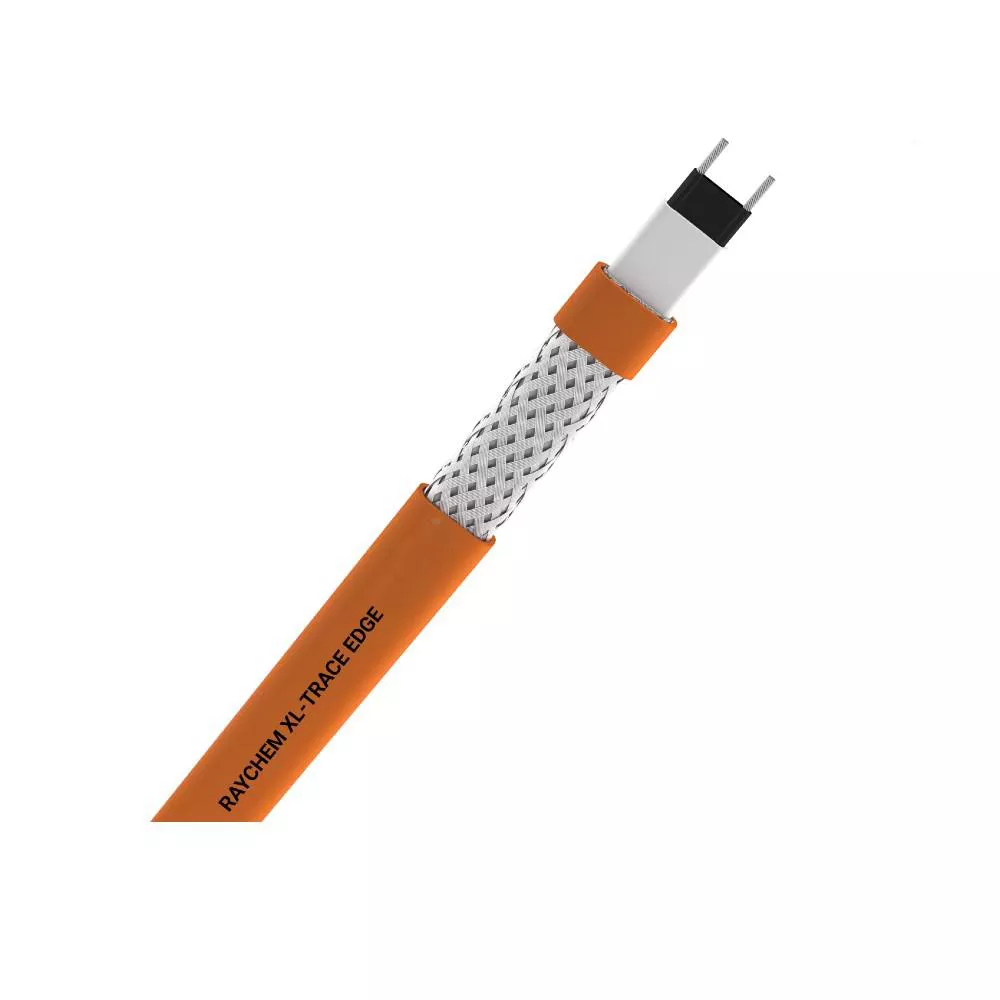

For pipe freeze protection and temperature maintenance of grease disposal or fuel lines. Self-Regulating Heating Cable, 120 V, modified polyolefin jacket, 5W/ft.
Simple to design
Easy to install: cut to length, meter marks, fast RayClic cold connection system
Energy efficient and safe: self-regulating cable, advanced energy saving controls, no cable overheating possible, suitable for plastic pipes
Reliable during long life: 10 year extended product warranty available, maintenance free
Specifications
Brand Name
Raychem
Sub Brand
XL-Trace
Item Name
Heating Cable
Type
Self Regulating
Voltage Rating
120 V
Core
Conductive
Conductor Size
16 AWG
Conductor Material
Nickel-Plated Copper
Wattage
5 W/ft
Minimum Bend Radius
1/2 in
Temperature Rating
154 °F
Insulation Material
Modified Polyolefin
Jacket Material
Modified Polyolefin
Standards
cULus Listed
Application
For Pipe Freeze Protection and Flow Maintenance of Grease Waste Lines (Above and Below Ground) and Fuel Lines (Above Ground)
UPC
715629421197
