The XTV family of Raychem self-regulating heat trace cables provides solutions for industrial pipe freeze protection and process temperature maintenance applications requiring high power output. Raychem XTV heat trace cable can withstand temperatures up to 482°F (250°C) and provide process temperature maintenance to 250°F (121°C). The heating cables are configured for use in nonhazardous and hazardous (classified) locations, including areas where corrosives may be present.The power output of self regulating electric heat tracing depends on the heating cable temperature and can provide up to 20 W/ft. at 50°F (10°C). Raychem XTV heat trace cables meet the requirements of the U.S. National electrical Code and the Canadian Electrical Code.
Simplified design in hazardous area: T2 and T3-T6 based on systems approach
Longer circuit lengths due to larger cross section conductors
Fast installation: cut-to-length, multiple overlaps allowed, meter markings, user-friendly connections kits
Safe and efficient in operation: no overheating, uniform pipe temperatures, energy saving technology
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Sub Brand
RAYCHEM
Item Name
Heating Cable
Type
High Temperature, Self Regulating
Number of Conductors
2
Voltage Rating
200 – 277 VAC

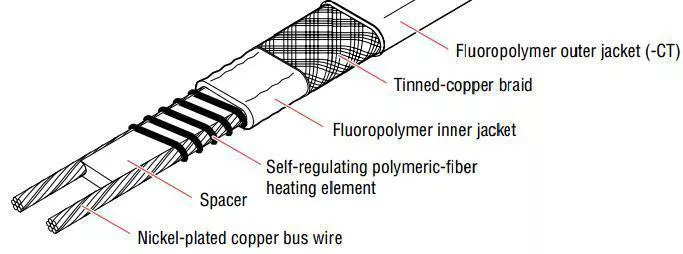

Material
Polymeric-Fiber Heating Element
Series
XTV
Core
Self-Regulating Conductive Core
Conductor Size
14 AWG
Conductor Material
Nickel Plated Copper
Wattage
5 W/ft
Minimum Bend Radius
1/2 in
Temperature Rating
482 °F Withstand, -40 °F Minimum Installation
Insulation Material
Tinned Copper Braid
Jacket Material
Fluoropolymer
Color
Red
Standards
IECEx, FM Approved, CSA Certified
Application
For Industrial Freeze Protection and Process Temperature Maintenance Applications Requiring High Power Output and Both Nonhazardous and Hazardous Locations
UPC
715629008305
