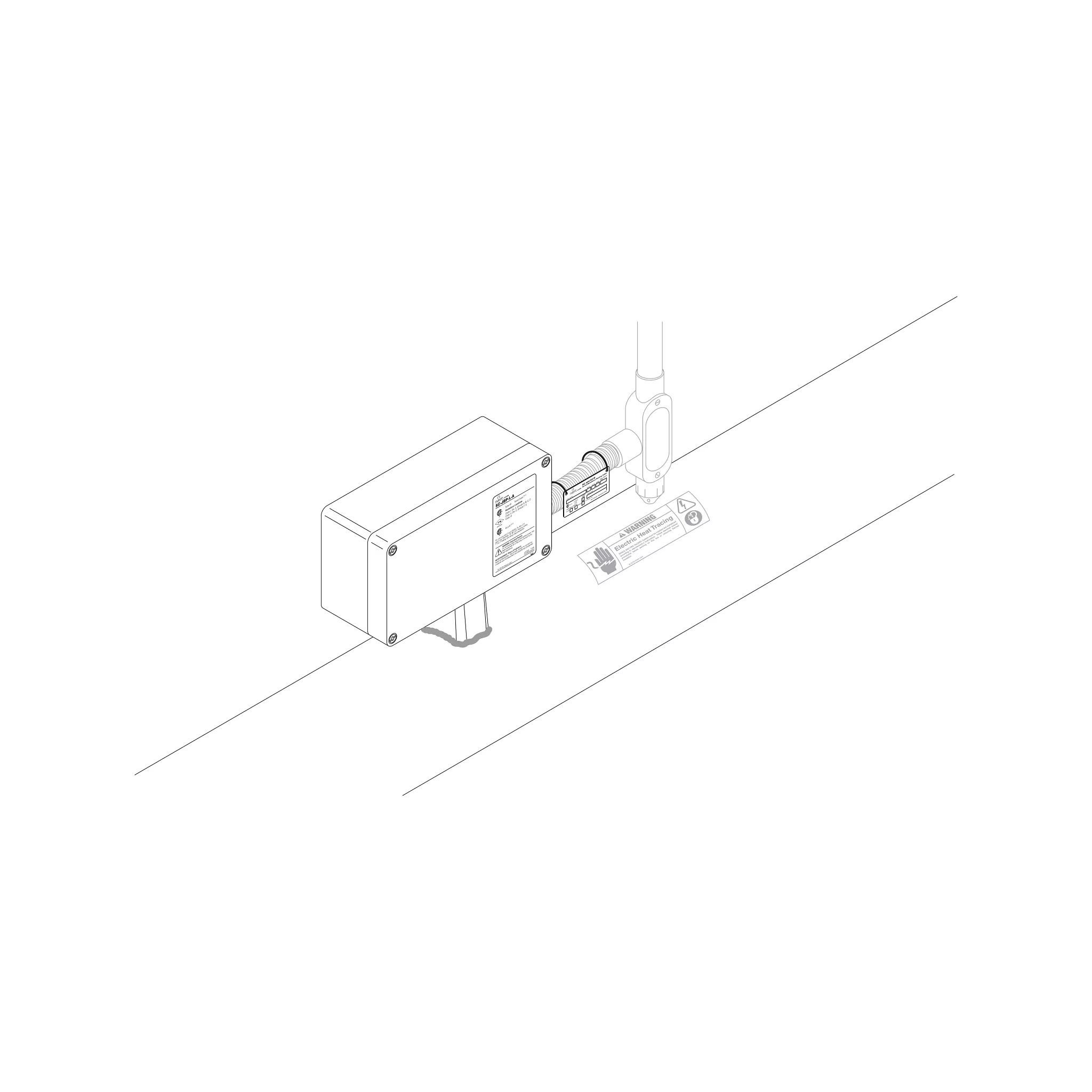

The Raychem JBM-100 connection kit serves as a power connection, splice, or tee for up to three Raychem BTV, QTVR, XTV, KTV, or VPL industrial parallel heating cables. It is approved by FM, CSA, and PTB(1) for use in hazardous locations. Relevant applications include process temperature maintenance, process temperature maintenance and tank heating.Industries Served:•Chemical and Pharmaceutical •Food and Beverage •Marine •Mining •Oil and Gas •Power
Simple and fast to install, spacious boxes with front access, captive lid screws and robust spring type terminals for secure fixing
Part of a modular component system, providing maximum flexibility
One range for all nVent RAYCHEM industrial parallel heating cables
Simplified design in hazardous area, integral part of system approval
Cold-applied: core sealing boot with non-curing sealant; no heat gun, no hot work permit needed
Reliable during long life: 10 year extended product warranty available, maintenance free
Specifications
Brand Name
Raychem
Item Name
Power Connection Kit
Type
Single Entry
Voltage Rating
480 VAC
Conductor Size
8 AWG
Material
Glass-Filled Engineered Polymer
Color
Black
Mounting
Screw, Snap-In
Temperature Rating
-40 °F
Length
8.66 in
Includes
(1) Junction Box with Terminal, (1) Stand Assembly, (3) Core Sealers, (3) Green/Yellow Tubes, (1) 3/4 in Stopping Plug Assembly, (1) Light Module, (2) Grommet Plugs
Standards
FM Approved, CSA Certified, IECEx
Application
For BTV, QTVR, XTV, KTV Parallel Heating Cables
UPC
715629009111
