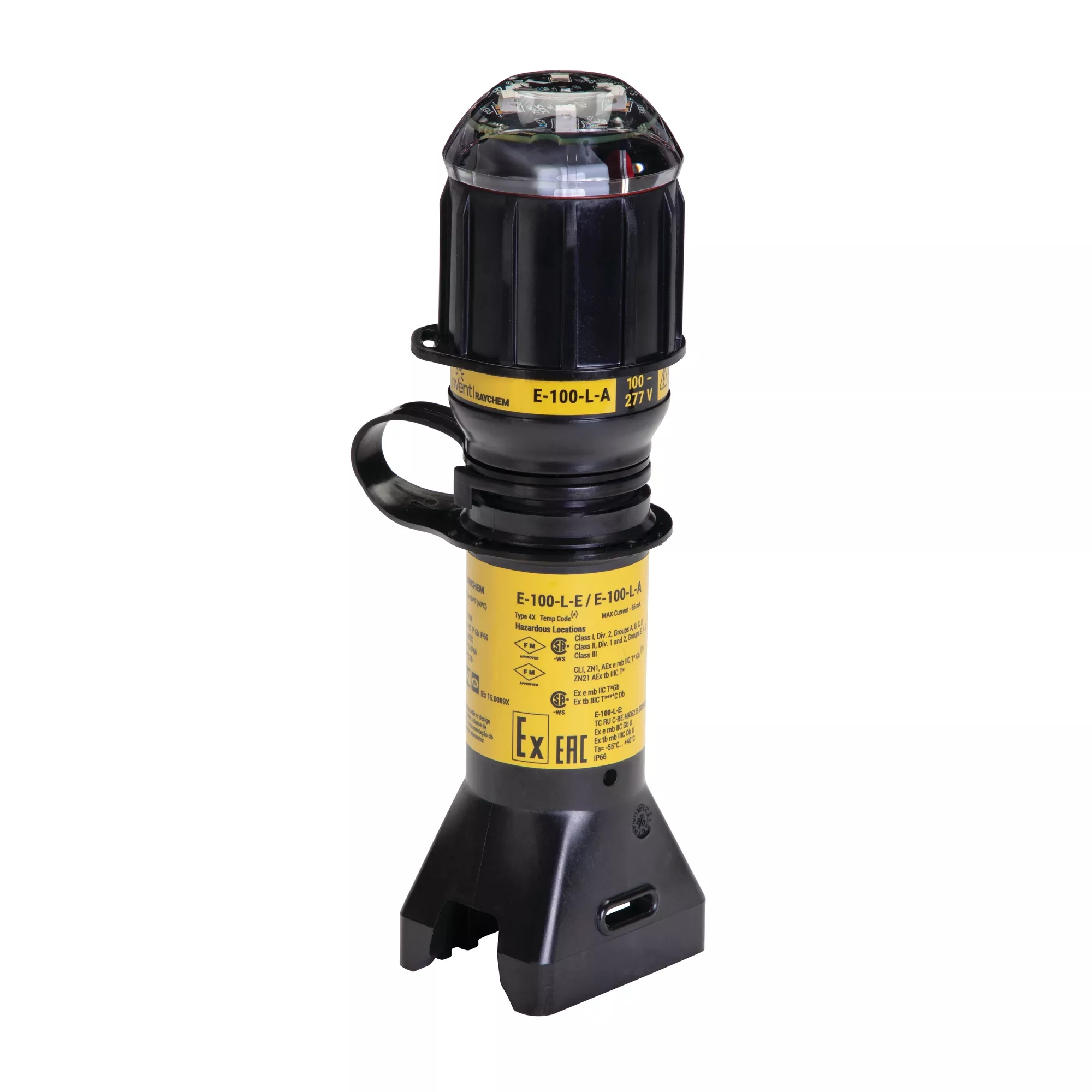

The E-100-L-A is a Type 4X-rated end seal kit with a light that indicates voltage at the end of the circuit. It is designed for use with Raychem BTVCR, BTV-CT, QTVR-CT, XTV-CT, KTV-CT, and VPL-CT industrial parallel heating cables. Once installed, the end seal is easily re-entered for maintenance and the heating cable can be accessed without removing the end seal. The LED indicator light provides excellent visibility.This kit may be installed at temperatures as low as –40°F (–40°C). For easier installation store above freezing until just before installation. Kit is rated for 100 to 277 V. Make sure voltage rating of light is the same as that of the heattracing circuit.
Simple and fast to install and test
Cold-applied: no heat gun or hot work permit required, re-enterable
High performance: resistant to impact, high temperature, chemicals and UV
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Item Name
End Seal Kit
Type
High-Profile
Material
Polymer
Color
Black
Series/Model
E-100
Specifications
Cold Applied Connection Type, <=277 V Voltage Rating, 260 °C Maximum Exposure Temperature
For Use With
BTV-CR, BTV-CT, QTVR-CT, XTV-CT, KTVCT and VPL-CT Industrial Parallel Heating Cable
Includes
Red LED Light Indication
Application
Tank Heating; Offshore/Maritime Winterization; Pipe Freeze Protection; Process Temperature Maintenance
UPC
715629008268
