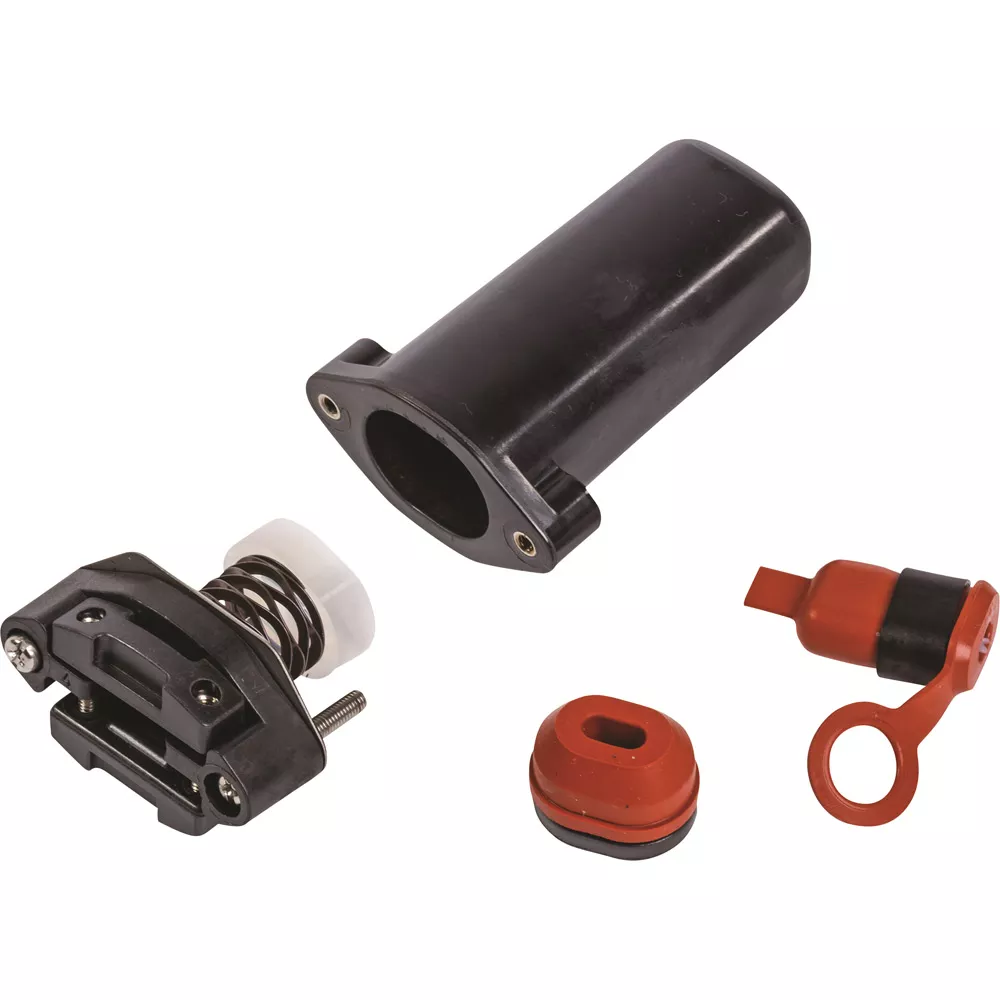

The E-150 is a cold-applied low-profile end seal. It is designed for use with the following Raychem brand heating cables: BTV, QTVR, XTV, and KTV. Use the E-150 in applications with temperatures ranging from –60°F to 420°F (–50°C to 215°C). It is approved by FM, CSA, and PTB for use in hazardous locations. The unique design of the E-150 suits the demanding requirements of the industrial environment. The low-profile housing can be installed on pipes and other surfaces. A spring-loaded grommet makes a first seal to maintain a watertight connection, while the silicone-free, noncuring sealant used in the Raychem sealing boot adds a second seal, providing additional protection. The rugged construction makes the E-150 resistant to impact and suitable for high-temperature and chemical exposure. The end seal requires no heat source for installation and it is re-enterable, making maintenance fast and easy. Each kit contains all the necessary materials to do one end termination.
Simple and fast to install and test
Cold-applied: no heat gun or hot work permit required, re-enterable
High performance: resistant to impact, high temperature, chemicals and UV
Reliable during long life: 10 year product warranty available, maintenance free
Specifications
Brand Name
Raychem
Item Name
Cold Applied End Seal Kit
Type
Low Profile
Voltage Rating
277 V
Material
Engineered Polymer Enclosure and End Plate, Silicone Rubber Sealer, Stainless Steel Screw
Color
Black
Temperature Rating
-50 to 215 °C
Series/Model
E-150
Length
100 mm
For Use With
BTV, QTVR, XTV and KTV Raychem Heating Cables
Includes
End Seal Enclosure Housing, Sealing Grommet Assembly, Core Sealing Boot, Identification Label, Installation Instruction
Standards
CSA Certified, FM Approved
Application
Offshore/Maritime Winterization; Pipe Freeze Protection; Tank Heating; Process Temperature Maintenance
UPC
715629420077
