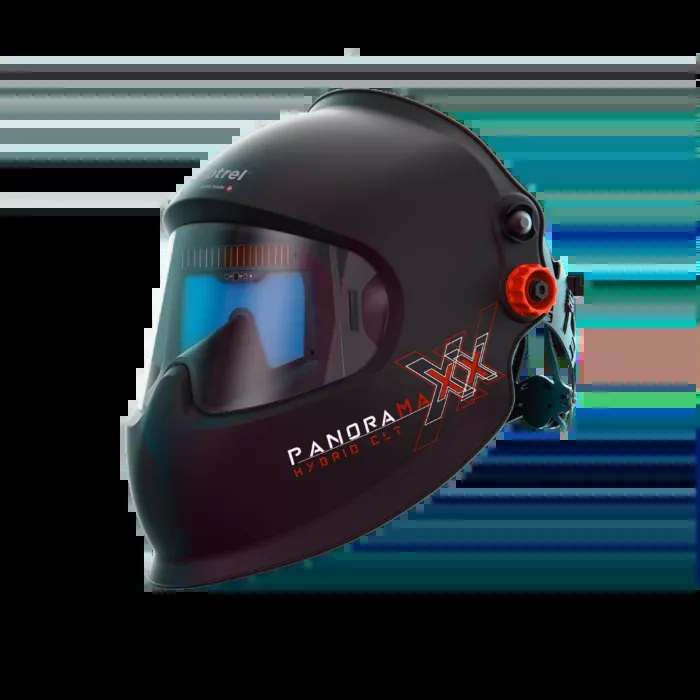

Optrel Panoramaxx Hybrid CLT Laser Welding Helmet

Original price was: $172.64.Current price is: $100.93.

Sale!
SKU: 1010.302 Category:
Share

Professional Laser-Welding Protection

The Optrel Panoramaxx Hybrid CLT delivers superior protection for laser welding applications with Crystal Lens Technology 2.0 and ShadeTronic® automatic shade adjustment from 2.5/4-12. Features true-color view without green or blue tint for realistic color perception during welding operations.

Advanced Technology Features

  • Panoramic XXL field of view – 6 times larger than standard auto-darkening filters
  • Five sensors for maximum safety in difficult lighting conditions
  • FadeTronic® opening delay reduces eye fatigue
  • Rechargeable Li-polymer battery with solar panel backup
  • Ultra-fast switching time: 0.090ms light to dark
  • Grinding mode for brightest vision during grinding work

Applications

  • Laser welding – laser range 1030 – 1100 nm
  • Electrode Welding (Stick Welding, SMAW)
  • MIG/MAG (GMAW)
  • GMAW High melting rate process
  • Flux Cored Wire Welding
  • TIG Welding (GTAW)
  • Plasma Arc Welding
  • Plasma Cutting
  • Gas Welding
  • Grind Mode

Comfort and Durability

Lightweight at 685g with IsoFit® headgear for three-dimensional adjustment. Certified to CE, ANSI Z87.1, and multiple international standards. Suitable for all electrical welding processes plus laser welding in 1000-1100nm range. Includes 2-year warranty with optional extension to 3 years.

Techdata

Shade Levels Inactive: Shade level 2.5Active, Manual: Shade level 3-8ShadeTronic 4-12
Energy Supply Solar cells, Li-polymer battery pack, chargeable via Micro-USB
Battery Life 300 to 500 charging cycles
Sensors Five sensors
Sensitivity Continuously, new with “Super High” sensitivity
Switching time Light to Dark: 0.090ms at 20°C, 0.070ms at 55°CDark to Light: 0.1s to 2.0s (with FadeTronic)
Field of Vision 2.3 to 6.3 times bigger than a 100 x 50 mm standard ADF
Classification EN379 1/1/1/1
Eye Protection UV/IR protection: maximum protection at all shade levelsLaser protection: 1030-1100nm16321 OS W3/4-9/5<13 V21030-1100 D LB7 IR LB8 OS1030-1100 OD7 C5 PS3ISO 19818-1 OS CE
Operating Temperature -10°C to +55°C / 14°F to 131°F
Storage Temperature -20°C to +70°C / -4°F to 158°F
Total Weight 685g / 24.02 oz
Certifications CE, UKCA, complies to ANSI Z87.1, AS/NZS 1337.1, AS/NZS 1338.1, CSA Z94.3
Scope of Delivery Welding helmet, Optrel IsoFit® Headgear, Operating Instructions, Storage Bag, Micro USB Charging Cable, Front Cover Lens, Warranty Card
Guarantee 2 years with additional 1 year warranty extension (excluding battery) if the product is registered within the first 6 months: click here to register

All Features

Advanced Optics & Visibility

  • Crystal Lens Technology 2.0Ultra-clear, bright view before, during, and after welding with a light state of 2.0 for maximum visibility.
  • True-Color ViewHigh-contrast, realistic color perception with no green or blue tint, improving weld accuracy.
  • Panoramic XXL Field of ViewDelivers up to 6x the viewing area of standard welding helmets for unmatched awareness.
  • Anti-Glare ProtectionReduces glare to improve visibility and minimize eye fatigue during long jobs.

Intelligent Auto-Darkening System

  • ShadeTronic®Automatically adjusts shade levels to match changing arc brightness in real time.
  • FadeTronic® (Twilight Function)Smooth, adjustable transition from dark to light state to reduce eye strain.
  • Delay FunctionControls how quickly the lens returns to light state after welding.
  • Sensitivity RegulationFine-tunes lens responsiveness based on your environment and welding conditions.
  • Multi Sensor Detection (Up to 5 Sensors)Ensures consistent arc detection even in challenging lighting conditions.

Laser & Safety Protection

  • Laser Protection SystemDesigned for hand-held laser welding, with integrated side protection to block scattered radiation.

Power & Convenience

  • Rechargeable Battery SystemLithium-polymer battery charges via solar power or USB, ensuring continuous operation.
  • Grinding ModeProvides the brightest possible view for grinding and non-welding tasks.

Comfort & Ergonomics

  • IsoFit® HeadgearFully adjustable 3D fit that adapts to any head shape for all-day comfort.
  • Patented Excenter AdjustmentPrecisely positions the helmet with a simple twist for optimal balance.
  • Position LockerKeeps the helmet securely in place—whether raised or lowered.

Jobsite Versatility

  • Hard Hat Adapter CompatibleWorks seamlessly with industrial safety helmet accessories.
  • Optimized for Overhead WeldingRounded front design improves performance and comfort for overhead applications.
