Product Description

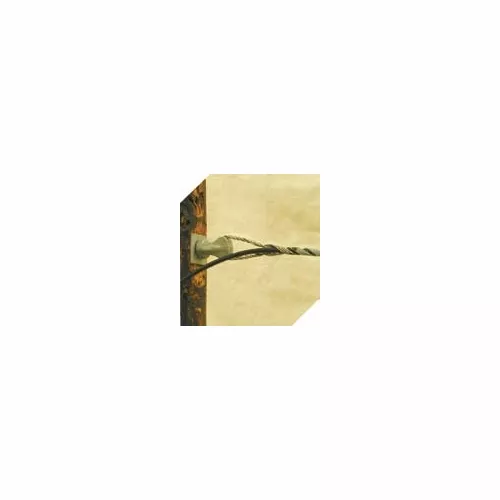

Preformed Line Products 288811353T FIBERLIGN® ADSS DROP CABLE DEAD-ENDS = ROUND PROFILE Cable Diameter Range 0.371-0.380 in., Yellow. Overall length 27 in. *Add suffix code “T” to Dead-end catalog number to receive P/N 00065474 Thimble.P/N 00065474 is a ½” standard thimble – weight is 0.12 lbs. each.Adapts to all ADSS Drop Designs: -Round Profile -Flat Profile Span Lengths up to 300’ (91.4 m) -Drop Applications (Structure to Premise)Easy Installation: No Tools Required Connect to Conventional Fittings -Direct Connection to 1.5″ (38.1 mm) diameter fitting-Thimble used at J-hooksTested: Elevated temperature at 140o F (60o C) tensile test-Installation Load typically 100 lbs (45.36 kg)Room temperature tensile test -Maximum Rated cable load 250 to 500 lbs (113.4 kg to 226.8 kg)Add suffix code “T” to receive P/N 00065474 Thimble
