Product Description

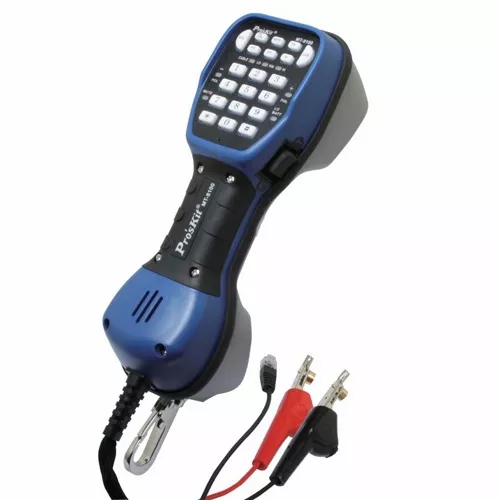

ACTERNA/JDSU/TTC PRO’S KIT MT-8100 BUTT SET (NEW)Pro’sKit MT-8100 Butt Set comes with all the functions you need to be more productive in the field, It was approved by IEC/EN 60529 IP54 for waterproof and dustproof test, and features the latest improvements to drop protection reliability. MT-8100 is a smart operation unit used by installer, repair technicians and other authorized personnel to test copper wire voice subscriber lines. It is easy to use, features Line voltage test, continuity test, two-way hands-free amplified speakerphone, speed dialing, low battery indicator and a rugged locking belt clip. Complied with IP54 Dustproof & Waterproof testsDrop ProtectionCE approvedHigh impedance monitorOuter-lead voltage LED indicatorsOn/off checking feature checks out if telecom line is connected well.Continuous polarity LED indicators.Speakerphone for convenient hands-free two-way conversationTone and pulse operationStore up to twelve 16-digit numbers in repeat dialer (speed dialing), plus extra number store in M1 button.Last number redial feature.PBX pause button.Mute switchElectronic switch controls the volume of the speakerphone/monitor.Automatic shut-off feature turns off speaker after five minutes of inactivityBattery low-voltage LED indictorsAudible electronic ringerRelocatable steel locking belt clipAngled Bed of Nails allows it stab into the cable, and the auxiliary RJ-11Modular plug can be inserted directly into telecom jack.ELECTRICALLoopspan limit2 KO maximum at 48 VDC (nominal 20 mA minimum loop current)DC resistanceTalk Mode3000 typicalMonitor impedance39kO nominal at 1 KHzRotary dial outputPulsing rate10pps+0.8ppsPercent break61%±2%Interdigit interval1000 ms typicalLeakage during Break>50 KODTMF outputTone frequency error±1.2% maximumTone level-8±2dBm combined (typical)High versus low tone Difference4 dB maximumMemory dialingMemory capacity13 memories including M1, last number redialingDigit capacity16 digits per memoryPBX pause duration4 secondsLine Voltage Test5 Phase AC/DC voltage indication(under24 V?24~00V”?101~50V?151~00V?more than 200VMonitor amplifier power source9V transistor; provides 25 hours continuous use, typicalAutomatic power shut offAfter 5 min. of no audio signalSpeaker phone levelsElectronic adjustablePower sourcebattery (9V) 6F22 (not included)PHYSICALMeasurement230 ×82 × 89mm(9-1/16” × 3-15/64” × 3-1/2”)Weight635g typicalWater ResistanceDust protection & Waterproof tested to an IEC/EN 60529 IP54 ratingCord SetsAngled bed of nails and RJ11 plugENVIRONMENTALTemperatureOperating: 0 to 50°Cdiv>Storage: <-10 to 60°CAltitudeTo 10,000 feet (3,000M) maxRelative humidity5 To 95%CERTIFICATEIP54, CE approvedModel: MT-8100Shipping Weight: 1.85lbs
