PROGRESSIVE 2003 PULSER LOCATOR W/A FRAME, REPAIRED

Product Description

---

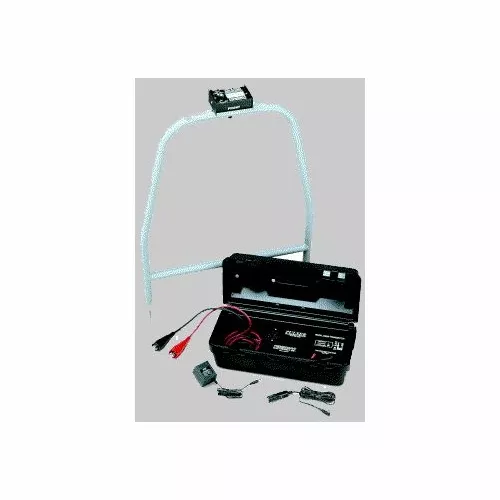

GREENLEE 2003 PULSER LOCATOR W/A FRAME, REPAIREDCompletes your buried cable troubleshooting tool set. The Model 2003 Pulser Cable Fault Locator pinpoints even the smallest breaks in buried cable insulation. Portable transmitter pulses a high voltage signal that radiates into the earth at fault locations. With the A-frame mounted receiver, a visual analog meter points the way to the source of the voltage. Identifies multiple faults on a single wire, indicating the need to replace instead of repair. Complete with a rechargeable transmitter, receiver, A-frame, ground stake, 120VAC charger, 12 volt DC cigarette lighter adapter and complete operating instructions. Extra long test leads feature heavy duty alligator clips for use on multiple cable types. Built to withstand years of demanding service, the 2003 Pulser Fault Locator is a great complement to any buried cable locator.Pinpoints underground wire breaks & insulation nicks and eliminates time wasted digging.Specifications:Power; receiver, one 9v battery; transmitter, one 12V rechargeable batteryBattery life; transmitter, 23 hrs per charge; receiver, 200 hrsTransmitter power; 3400 VDC peakVoltage protection; 240 VAC, 400 VDCTransmitter; aluminum housing, polyethylene case, 6.5 x 8.5 x 17″ in caseReceiver; powder coated aluminum, 3.25 x 21.75 x 33.5″ on A-frameTotal weight; 12.5 lbsshipping dimensions and weights (2 packages)21″x12″x11″12 lbs25″x3″x35″ 5 lbs
