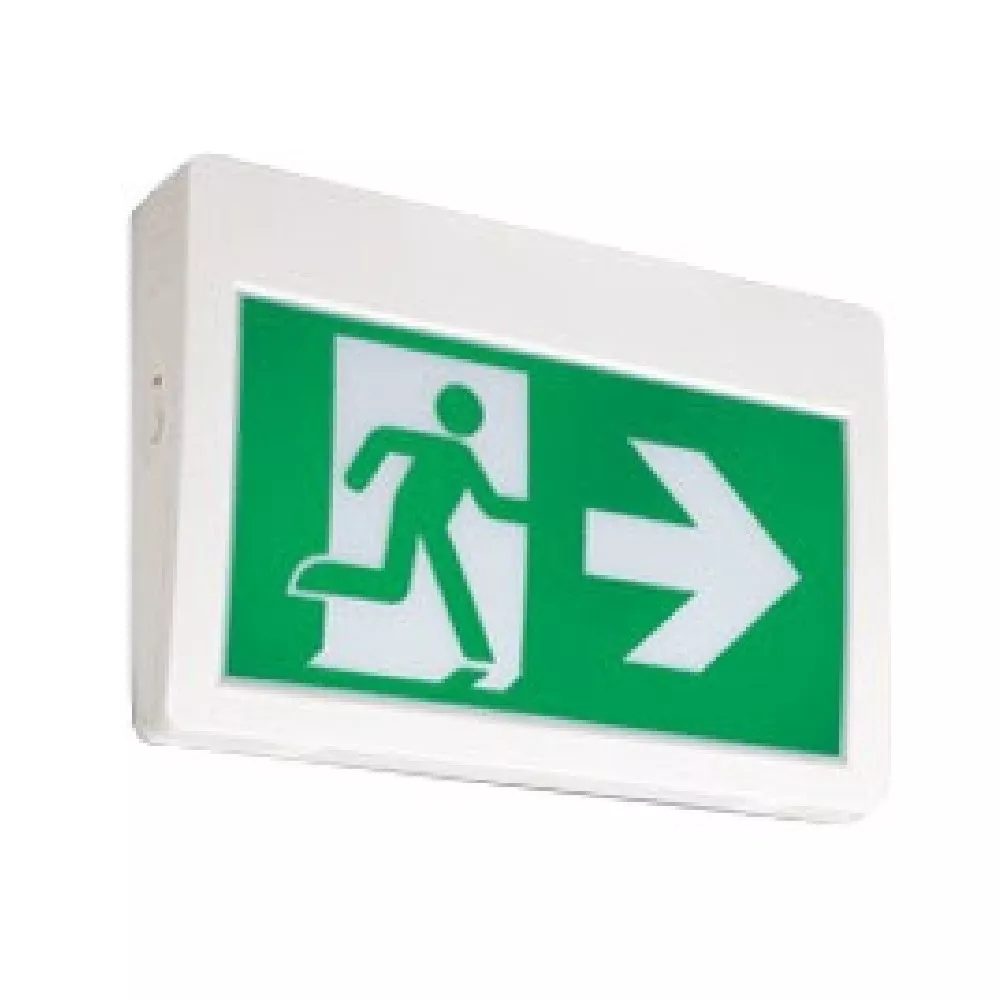

Features:• Energy efficient, long-life white LEDs consuming 4.2W at normal operation• Back plate included for single face wallmount installation. No canopy required• Dual voltage input capability 120/347VAC• Selection of AC/DC, 6 to 24VDC or Self-Powered using a 3.6V Nickel-Cadmium battery• Automatic, temperature compensated, pulse type charger• Low voltage disconnect prevents over discharge of battery• Automatic brownout protection• Battery lock-out prevents discharge during installation• Comes standard with three pictogram legends for direction selection• Red LED charger monitor• Injection-molded off-white thermoplastic ABS housing• Fast and easy installation with snap-together design• Ceiling, wall or end mount installation• Meets or exceeds CSA 22.2 No.141-15 certified • Comes standard with one (1) year warranty
Specifications
| Brand Name | ABB | Item Name | Exit Sign |
| Type | Self-Powered | Housing Color | White |
| Voltage Rating | 120/347 VAC | Lamp Wattage | 4.2 W |
| Fixture Wattage | 4.2/3.6 W | Dimensions | 13-5/8 in L x 2-3/16 in W x 9-1/16 in H |
| Lamp Type | LED | Legend | Running Man |
| Letter Color | Red | Battery Type | Nickel-Cadmium |
| Emergency Illumination Time | 120 min | Mounting | Ceiling/Wall |
| Series/Model | LCS | Housing Material | ABS |
| Amperage Rating | 0.5/0.4 A | Standards | CSA 22.2 No. 141-15 Certified |
| UPC | 624616309946 |
