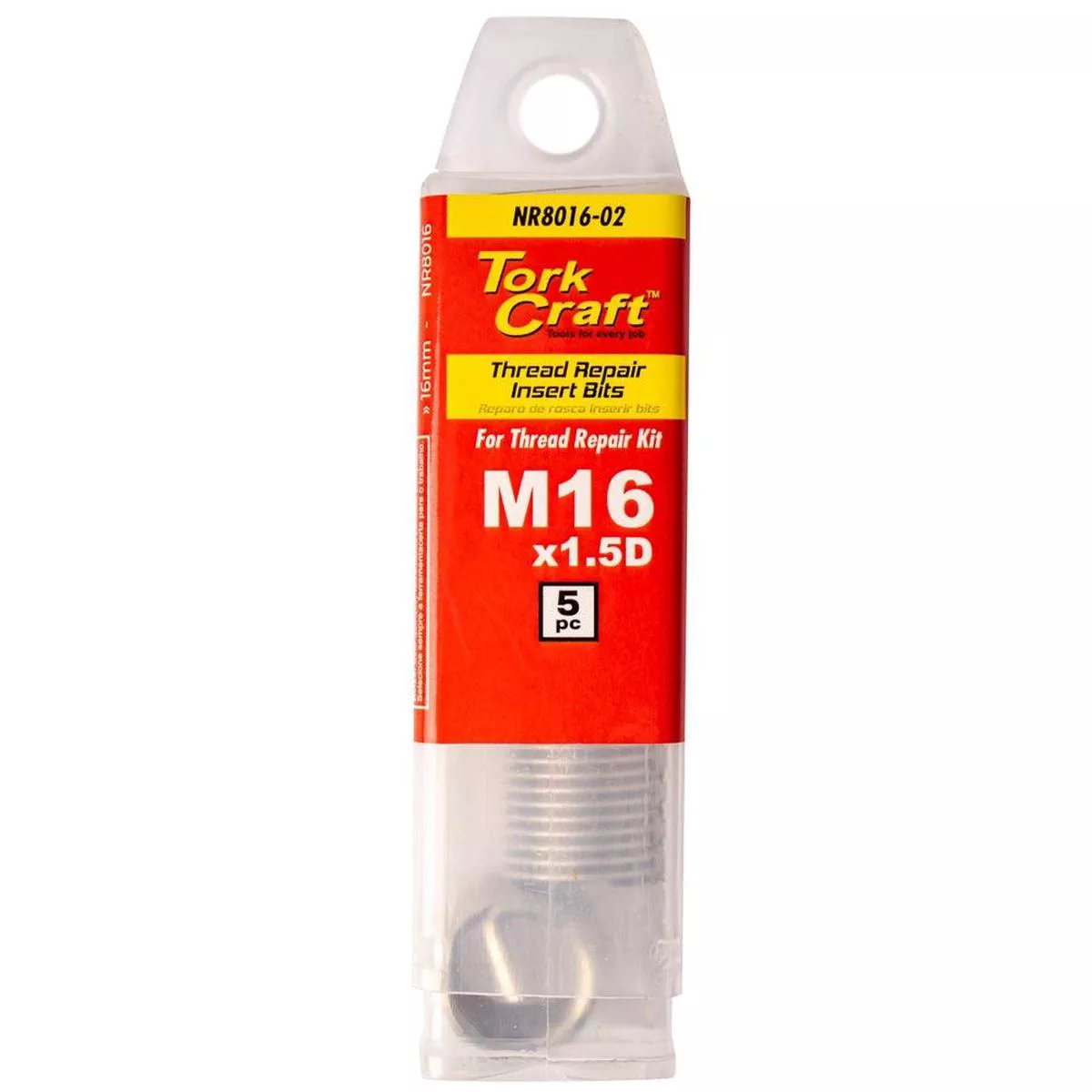

Tork Craft Thread Repair Kit M16 X 1.5 D Replacement Inserts 5 Pce

Thread Repair Insert

M16 X 2.0mm X 1.5 D

Thread Length: 24 Mm &Nbsp;&Nbsp;&Nbsp;&Nbsp;&Nbsp;&Nbsp;Qty: 5 Pieces

Restore Stripped Threads Easily And Permanently With Tork Craft Thread Repair Kits. Tork Craft Application Specific Thread Repair Kits Make Complex Repairs Simple And Are A Recommended Solution By Automakers.

Tork Craft Inserts Are For Permanently Repairing Tapped Holes Which Have Been Stripped Or Damaged Due To Wear, Corrosion, And Over Torqing.

Available In M4, M5, M6, M8, M10 And M12 And In Three Thread Lengths Per Thread Size.

A Quality Product By Tork Craft

Let’s Make Sense Of The Numbers:

Example:

M4 X 0.7 X 1.0 D

M4: The Metric Value Of The Required Thread I.E. Metric 4mm

0.7: This Is The Pitch Of The Thread

1.0 D: This Is The Installed Length Of The Insert After Installation.

Determining The Installed Length:

M4 X 1.0 D = 4mm Deep

M4 X 1.5 D = 6mm Deep

M4 X 2.0 D = 8mm Deep

Thus, The Depth (Length) Of The Installed Insert Will Be The Metric Diameter Of The Thread (In This Case M4) Multiplied By The D Value.
