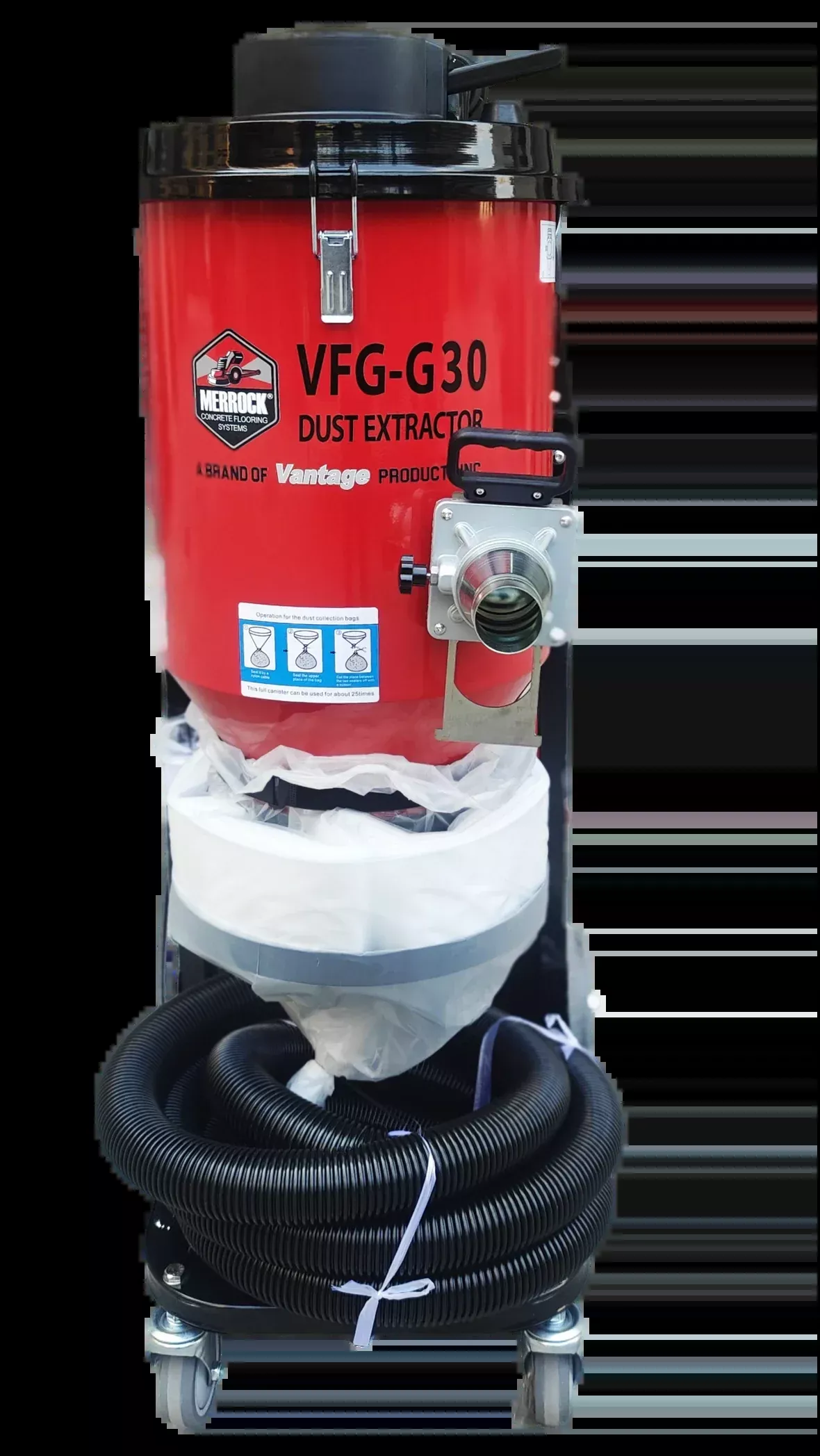

The VFG-G30 and VFG-G32 HEPA Dust Extractors are high-capacity industrial vacuum systems engineered for concrete grinding, polishing, surface preparation, coating removal, and large-scale dust collection applications. Designed for demanding commercial and industrial environments, these units combine powerful airflow, H13 HEPA filtration, jet pulse filter cleaning, and continuous bagging technology to maximize dust control and productivity.
Built for professional contractors, the G30 and G32 are ideal companions for planetary grinders, scarifiers, shot blasters, and large surface preparation equipment. Their multi-stage filtration systems help capture fine airborne dust while maintaining consistent suction during extended operation.
Key Features
Contractor-Grade Dust Extraction
Designed for continuous operation in demanding jobsite conditions.
- High airflow performance
- Powerful suction capability
- Heavy-duty construction
- Industrial-grade filtration
- Daily contractor use
H13 HEPA Filtration System
Advanced two-stage filtration captures fine airborne dust particles.
- HEPA efficiency greater than 99.99% at 0.3 microns
- OSHA-oriented silica dust control
- Multi-stage filtration system
- Extended filter service life
- Improved jobsite air quality
Jet Pulse Filter Cleaning
The reverse-air jet pulse cleaning system allows operators to clean filters without opening the vacuum.
Benefits include:
- Maintains airflow performance
- Reduces downtime
- Extends filter life
- Prevents secondary dust exposure
- Improves productivity
Continuous Bagging Dust Collection
Designed for cleaner dust disposal and easier maintenance.
- Continuous folding bag system
- Reduced operator exposure
- Cleaner disposal process
- Increased jobsite efficiency
- Compatible with standard collection bags
Technical Specifications
| Specification | VFG-G30 | VFG-G32 |
|---|---|---|
| Voltage | 120V / 60Hz | 230V / 60Hz |
| Motor Configuration | 3 Motors | 3 Motors |
| Maximum Power | 2.4 kW / 3.2 HP | 3.6 kW / 4.8 HP |
| Current Draw | 16A | 12A |
| Maximum Airflow | 485 m³/h | 600 m³/h |
| Maximum Airflow | 285 CFM | 354 CFM |
| Airflow @ 2″ Intake | 224 CFM | 270 CFM |
| Airflow @ 3″ Intake | 247 CFM | 330 CFM |
| Maximum Vacuum | 200 mbar | 220 mbar |
| Water Lift | 81″ H₂O | 90″ H₂O |
| Hose Size | 24′ × 2″ | 24′ × 2″ |
| Inlet Diameter | 2.5″ (63 mm) | 2.5″ (63 mm) |
| Main Filter Efficiency | >99.5% @ 1 Micron | >99.5% @ 1 Micron |
| Main Filter Area | 49 ft² (4.5 m²) | 49 ft² (4.5 m²) |
| HEPA Filter Efficiency | >99.99% @ 0.3 Micron | >99.99% @ 0.3 Micron |
| HEPA Filter Area | 39 ft² (3 m²) | 39 ft² (3 m²) |
| Noise Level | 70 dB(A) | 70 dB(A) |
| Dimensions (L × W × H) | 30.7″ × 23.2″ × 57.5″ | 30.7″ × 23.2″ × 57.5″ |
| Weight | 149 lbs | 149 lbs |
