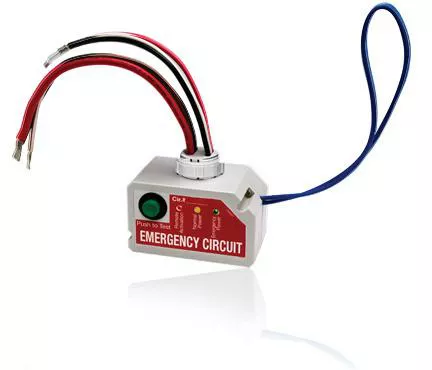

Wattstopper’s ELCU-200 Emergency Lighting Control Unit is a self-contained device that allows any standard lighting control device to control emergency lighting in conjunction with normal lighting in any area within a building.
Eliminates energy waste caused by emergency lighting that is always on
Integral push-to-test button activates emergency mode for a true test condition
Connects to EMTS-100 Remote Test Switch or other input to activate emergency on from a remote location
Operates as a control device or as a shunt
Senses local single circuit power failure
Zero cross switching technology for reliability and increased product life
Compatible with Wattstopper occupancy sensors, daylighting controls, lighting control panels, and dimmers
Specifications
Brand Name
Legrand
Item Name
Emergency Lighting Control Unit
Type
Push-to-Test
Voltage Rating
120 – 347 VAC
Amperage Rating
16 A
Series/Model
ELCU
Dimensions
3.1 in W x 1-1/2 in D x 3.1 in H
Mounting
1/2 in Knockout
For Use With
Model EMTS-100 Remote Test Switch
Standards
CSA C.22.2, No. 141-15 Certified, NEC, NFPA 101, OSHA Approved, UL 2043 Listed, UL 924 Listed
UPC
754182940394
