DESCRIPTION

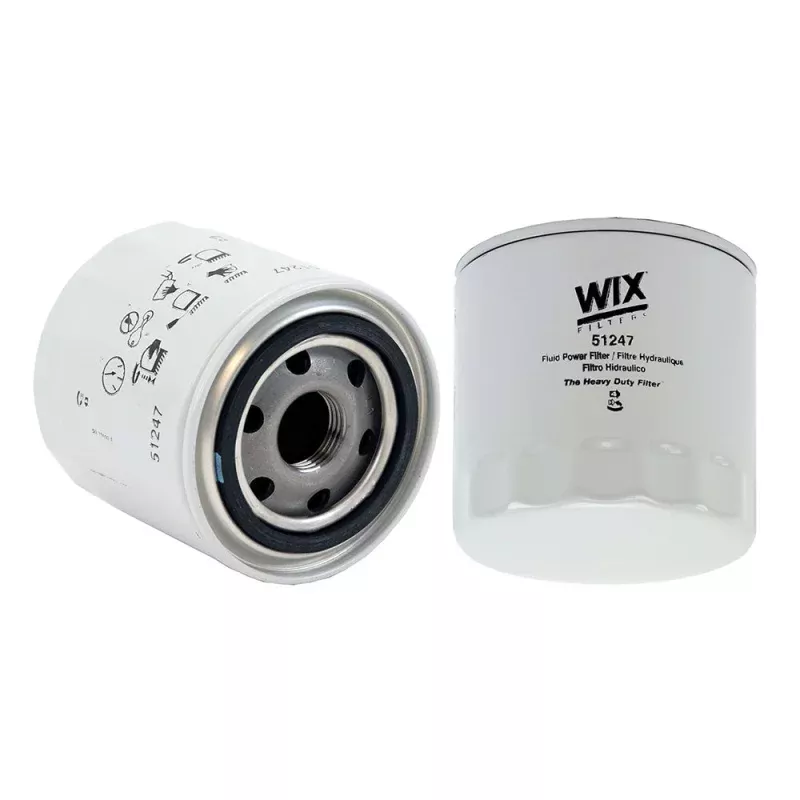

WIX 51247 Spin-On Hydraulic Filter
WIX HD Hydraulic Filters feature premium media specific to the application including wire backed synthetic, enhanced cellulose and wire mesh. High strength, corrosion resistant materials, center tubes, and end caps with superior sealing components ensure a leak resistant, long lasting, high performing hydraulic filter under all types of operating conditions. WIX filters are recommended for OEM hydraulic filter change intervals.
SPECIFICATIONS
| Class | HC |
| Media Material | Cellulose |
| Height | 3.790 |
| Anti-Drain Back Valve | No |
| Burst Pressure | 350 |
| Bypass Relief Valve Setting | 7-9 |
| Flow Rate | 12-16 GPM |
| Thread Size | 1-12 |
| BetaRatio | 2/20=14/32 |
| Duty Type | HD |
| Inner Diameter Top | Closed |
| Micron | 25.00 |
| Outer Diameter Top | 3.660 |
| Style | Spin-On Hydraulic Filter |
APPLICATION SMMARY
- Cub Cadet
- IHC
- JCB
- New Holland
- Scag
